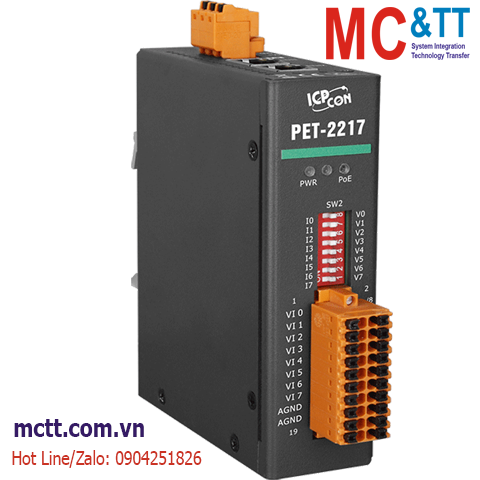

Module 2 cổng PoE Ethernet Modbus TCP & MQTT 8/16 kênh AI ICP DAS PET-2217 CR

Chia sẻ:
Mã sản phẩm: PET-2217
Thương hiệu: ICP DAS
Tình trạng:

PoE Ethernet I/O Module with 8/16-ch Analog Inputs

Liên hệ
Mô tả

Module 2 cổng PoE Ethernet Modbus TCP & MQTT 8/16 kênh AI ICP DAS PET-2217 CR

Features

  • Built-in Web Server
  • Support Modbus TCP/UDP, MQTT, and SNMP V2c Protocols
  • 2-port Ethernet Switch (LAN Bypass) for Daisy-Chain Wiring
  • Dual Watchdog
  • I/O Pair Connection (Push and Pull)
  • Built-in I/O
    • AI: 8 Channels or 16 Single-ended Analog Inputs

Introduction

The PET-2217 is a module with either 8 differential or 16 single-ended analog inputs. The module provides a programmable input range for all Analog Input channels, including ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V, 0 to 20 mA, 4 to 20 mA, and ±20 mA. Each analog input channel can be configured with an individual input range, providing high overvoltage protection up to 120 VDC and overcurrent protection up to 50 mA at 110 VDC/VAC. Voltage and current input can be selected via a DIP switch.

The sampling rate of the PET-2217 is adjustable and can be set to either fast mode (200Hz) or normal mode (20Hz). It can be used to record the voltage and current information. The module also features per-channel open wire detection for 4 to 20 mA input and provides 4 kV ESD/EFT protection, 2 kV Surge protection, and 3000 VDC intra-module isolation for added safety.

The PET-2217 module supports the MQTT protocol and can act as both a message publisher and subscriber. When connected to the MQTT Broker server, the module can publish the I/O status in real time using a topic and receive messages from subscribed topics. If the PET-2217 module becomes disconnected from the broker during communication, it has a reconnection mechanism that can automatically restore the connection. Additionally, a Keep-Alive Interval mechanism is in place to ensure a persistent connection with the Broker.

The PET-2217 supports the SNMP V2c specification, enabling it to transmit both module and I/O information to SNMP network management equipment or software (SNMP Network Management Software), providing real-time monitoring of the PET-2217 status for administrators. If the Trap function is enabled, the module can send a message to the manager when there is a change in I/O status or if the module reboots, keeping track of the channel status at all times.

Applications

  • Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, and Testing Equipment.

Specifications

Software
Built-in Web Server Yes
CPU Module
CPU 32-bit ARM
Watchdog Timer Module, Communication (Programmable)
Isolation
2-way Isolation Ethernet: 1500 VDC
I/O: 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
Surge (IEC 61000-4-5) ±2 kV for Power Line
LED Indicators
Status Run, Ethernet, PoE
Analog Input
Channels 8 Differential or 16 Single-ended
Type Voltage
Current
Range Voltage: ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V
Current: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (DIP switch selectable)
Resolution 16-bit
Accuracy Normal Mode: ±0.1% of FSR
Fast Mode: ±0.5% of FSR
Sampling Rate Normal Mode: 20 Hz (total channels)
Fast Mode: 200 Hz (total channels)
Input Impedance Voltage: 2 MΩ (Differential), 1 MΩ (Single-ended)
Current: 137 Ω (Differential)
Common Voltage Protection ±200 VDC
Overvoltage Protection 120 VDC
Individual Channel Configuration Yes
Open Wire Detection For 4 to 20 mA only
Ethernet
Ports 2 x RJ-45, 10/100 Base-Tx, Switch Ports
PoE Yes
LAN bypass Yes
Security Password and IP Filter
Protocol Modbus TCP, Modbus UDP, MQTT, and SNMP V2c
Power
Reverse Polarity Protection Yes
Consumption 3.5 W (max.)
Powered from PoE IEEE 802.3af, Class1
Powered from Terminal Block +10 to +48 VDC
Mechanical
Casing Metal
Dimensions (mm) 33 x 127 x 117 (W x L x H)
Installation DIN-Rail mounting / Wall mounting (Optional ASO-0015)
Environment
Operating Temperature -25 to +75 °C
Storage Temperature -40 to +80 °C
Humidity 10 to 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PET-2217     CR  PoE Ethernet I/O Module with 2-port Ethernet Switch, 8/16-ch Analog Input (RoHS)
