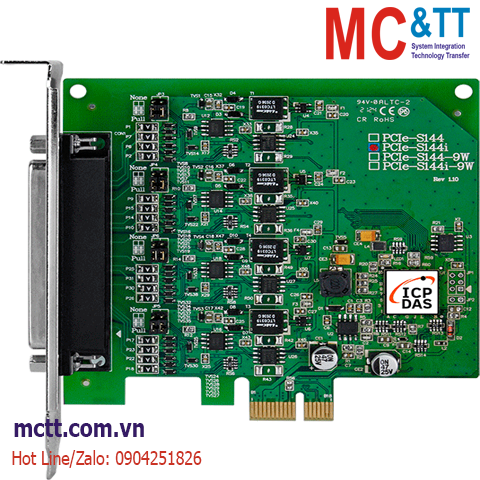

Card PCI Express 4 cổng RS-422/485 ICP DAS PCIe-S144i CR

Chia sẻ:
Mã sản phẩm: PCIe-S144i
Thương hiệu: ICP DAS
Tình trạng:

PCI Express, Serial Communication Board with 4 Isolated RS-422/485 ports

Liên hệ
Mô tả

Card PCI Express 4 cổng RS-422/485 ICP DAS PCIe-S144i CR

Features

  • Supports PCI Express x1
  • Provides 4 RS-422/485 ports
  • 256-byte Hardware FIFO for Each Port
  • Transmission Speed of up to 921600 bps
  • 256 modules max. in one RS-485 network
  • Automatic RS-485 direction control
  • ±4 kV ESD Protection for i versions
  • 3000 VDC Isolation for i versions
  • Short Card Design

Introduction

The PCIe-S144i series card provides 4 RS-422/RS-485 serial ports. Uart Bridge provides automatic data direction control for RS-485 signals. Each port can be configured as either RS-485 for half-duplex or RS-422 for full-duplex communication. It supports for speed up to 921600 bps and supports full-duplex communication.

The data lines of each serial ports on i version PCIe-S cards come with photocouplers design. The on-board photo couplers use a short optical transmission path to transfer a signal between elements of a circuit, and keep the data lines electrically isolated. It can help cutting down on ground loops, common mode voltages and block voltage spikes, provide electrical isolation, and offer significant protection from serious over-voltage conditions in one circuit affecting the other.

In harsh industrial environments, the on-board ESD protection component (for i version) diverts the potentially damaging charge away from sensitive circuit to protects the computer and equipment from the sudden and momentary electric current.

Drivers provided for a broad selection of operating systems, including 32/64-bit Windows XP/2003/2008/7/8/10 and Linux Kernel 2.4X/2.6X ~ 4.15.

Applications

  • Industrial Machinery
  • Building Automation
  • Restaurant Appliances
  • Laboratory Equipment & Research
  • Industrial Communication

Click to view the Introduction of https://mctt.vn/multi-port-serial-board

Specifications

Hardware
Connector DB-37 (Female)
COM Ports
Ports 4 x RS-422/485 (RS-422: TxD+, TxD-, RxD+, RxD-, RTS+, RTS-, CTS+, CTS-, GND / RS-485: Data+, Data-, GND)
Baud Rate 300 - 921600 bps
Parity None, Even, Odd, Mark, Space
Data Bit 5, 6, 7, 8
Stop Bit 1, 1.5, 2
FIFO Size Internal 256 bytes
Isolation 3000 VDC
Power
Consumption 440 mA @ 5 V
Mechanical
Dimensions (mm) 101 x 114 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

PCIe-S144i     CR  PCI Express, Serial Communication Board with 4 Isolated RS-422/485 ports (RoHS)
