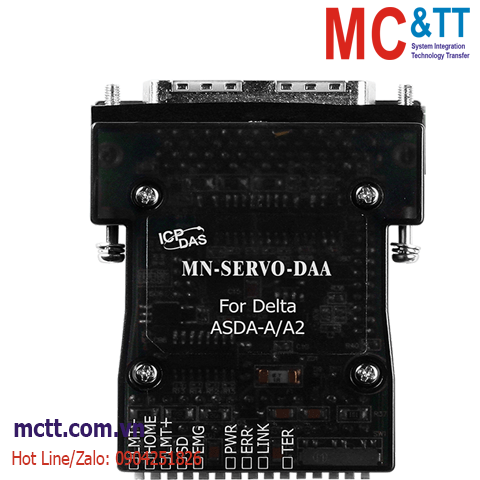

Distributed Motionnet Single-axis Motion Control Modules ICP DAS MN-SERVO-DAA CR
Features
- Maximum communication speed: 20 Mbps
- Pulse Output Rate: 6.6 MHz (Max.)
- Control up to 64 axes per line
- Multi-axis linear interpolation function
- 2-axis circular interpolation function
- T/S-curve acceleration and deceleration
- Change speed and position on the fly
- Slow down sensor, home sensor, positive and negative limit sensors for each axis
- Software limit and compare trigger output
- Three-way isolation for power, communication, and I/O
(Provide better noise immunity and device protection)
- The standard module equipped with Terminal Blocks for easy wiring
(Additional terminal board is not required)
Introduction
The MN-SERVO series is used to expand the number of axes for distributed motion control in Motionnet fieldbus. These extension slave modules can be directly plugged into the servo driver and being connected serially to the controller by a simple and affordable Cat.5 LAN cable, reducing the wiring effort between drivers and controller. This is very suitable for highly integrated machine automation applications. After the module is plugged into the servo driver, all you need to do is make the serial LAN cable connect between the modules. One serial line can support up to 64 single-axis modules. ICP DAS provides a variety of motion control modules suitable for a range of brands of servo drivers, such as Mitsubishi MELSERVO-J3/J4, Yaskawa Sigma II/III/V, Panasonic MINAS A4/A5, Delta ASDA-A/A2, and Teco TSTA-A/A+.
Specifications
| LED Indicators |
| Status |
Communication state (Link, Error)
Internal 3.3 V Power
Termination Resistor Switch
Mechanic Switch Input |
| General |
| Speed Profile |
Trapezoidal/S Shaped Acc/Dec Driving |
| Auto-Home Search |
13 Types |
| Axis I/O |
| Servo Interface Output |
SVON, ERC, ALM_RST |
| Latch Input |
Yes (shared with SD) |
| Mechanical Switch Input |
LMT+, LMT-, HOME, SD, EMG |
| Position Compare Output |
High-Speed 5 V TTL
or 24 V open collector |
| Servo Interface Input |
ALM, RDY, INP |
| Encoder Input |
| Mode |
CW/CCW, A/B phase |
| Counter Width |
28-bit |
| Pulse Output |
| Mode |
OUT/DIR, CW/CCW |
| Counter Width |
28-bit |
| Rate |
6.6 MHz (Max.) |
| Motionnet |
| Communication Connectors |
Spring Type Terminal Blocks |
| Transfer Speed |
2.5, 5, 10, 20 Mbps |
| Power |
| Input Range |
24VDC +/-5% (1000 V isolated) |
| Environment |
| Operating Temperature |
0 ~ +60 °C |
| Storage Temperature |
-20 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| MN-SERVO-DAA CR |
Distributed Motionnet Single-axis Motion Control Module with Spring Type Terminal Blocks for
Delta ASDA-A/A2 (RoHS) |
