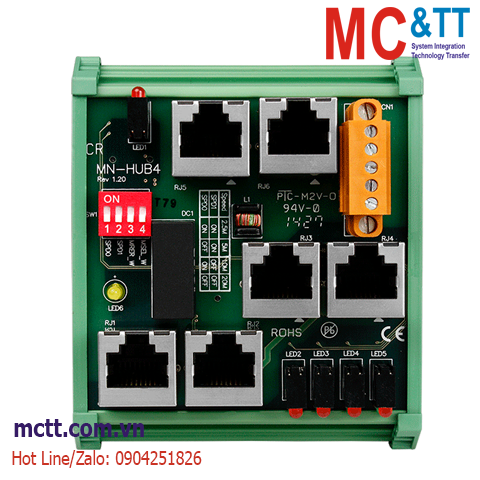

Module HUB 4 cổng phân tán Motionnet ICP DAS MN-HUB4 CR
Features
- True Motionnet Star Wiring Hub
- Independent Motionnet transceiver for each channel
- Maximum communication speed: 20 Mbps
- LEDs for indicating each Motionnet activity
- RJ-45 jack for standard module while the EC module equipped with Mini-Clamp connector
Introduction
In some user's application, users may encounter some difficulty in wiring since the standard Motionnet only support daisy-chain topology. The MN-HUB4 module can help users to use star or tree topology during wiring which not only can make the wiring more easier but also reduce the total wiring distance and cost.
Applications
Specifications
| LED Indicators |
| Status |
Communication state (Link, Error)
Internal 3.3 V Power |
| Motionnet |
| Communication Connectors |
RJ-45 |
| Transfer Speed |
2.5, 5, 10, 20 Mbps |
| Layers between Modules |
I/O or independent axis: 3 (Max.)
Between two interpolation axes: 2 (Max.) |
| Length |
100 M Max. (20 Mbps; up to 32 modules)
50 M Max. (20 Mbps; up to 64 modules)
100 M Max. (10 Mbps; up to 64 modules) |
| No. of Connection Line |
Main Line (same layer): 2
Branch Line (to next layer): 4 |
| Power |
| Input Range |
12 - 24 V |
| Environment |
| Operating Temperature |
0 ~ +60 °C |
| Storage Temperature |
-20 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| MN-HUB4 CR |
Distributed Motionnet 4-port Hub module (RJ-45 Jack) (RoHS) |
