Bộ đổi nguồn AC/DC Din-Rail MCTT-ZDR-60-48 60W, 48VDC, 1.25A

Model

ZDR-60-5

ZDR-60-12

ZDR-60-15

ZDR-60-24

ZDR-60-48

Dc output voltage

5V

12V

15V

24V

48V

Rated current

6.5A

4.5A

4A

2.5A

1.25A

Current range

0-6.5A

0-4.5A

0-4A

0-2.5A

0-1.25A

Rated power

32.5W

54W

60W

60W

60W

Ripple & Noise (Max)

80mVp-p

150mVp-p

150mVp-p

200mVp-p

240mVp-p

Voltage regulation

range

4.5-5.5V

10.8-13.8V

13.5-18V

21.6-26.4V

43.2-55.2V

Voltage accuracy

±2%

±1%

±1%

±1%

±1%

Linear adjustment rate

±1%

±1%

±1%

±1%

±1%

Load adjustment rate

±1%

±1%

±1%

±1%

±1%

Start & rise time

2000 m S，30 m S/ 115 VAC(full load）；1000 m S， 30 m S/ 230 VAC

Holding time

30 m S/ 230 VAC(Full load） 10 m S/ 115 VAC(Full load）

Input voltage

85 - 264 VAC           120 - 370 VDC

Input frequency

47 - 63 Hz

efficiency

82%

85%

86%

88%

88%

Input current

1.2 A/ 115 VAC     0.8 / 230 VAC

Power factor

0.65 / 230 VAC(Full load）

Inrush current

50 A/ 230 VAC（Cold start）

Leakage current

Over-load protection

110%-150% of rated power

Protection mode: hiccup protection, automatically recovered after abnormal

conditions are removed

Over-current protection

110%-150% of the rated current

Protection mode: hiccup protection, automatically recovered after abnormal

conditions are removed

Short circuit protection

Output positive negative short circuit

Protection mode: hiccup protection, automatically recovered after abnormal

conditions are removed

Operating temperature

-30 ℃~70 ℃ (refer to derating curve)

Working humidity

20 ~ 90% RH no condensation

Store

temperature/humidity

-40 ℃~ 85 ℃ 10 ~ 95%RH, no condensation

Vibration resistance

10 ~ 500 HZ, 5 G 10 minutes/cycle, X, Y, Z 60 minutes each

Withstand voltage

Input to output: 800 VAC

Insulation impedance

Input to output: 100 M Ohms/ 500 VDC/ 25℃/ 70% RH

Safety specification

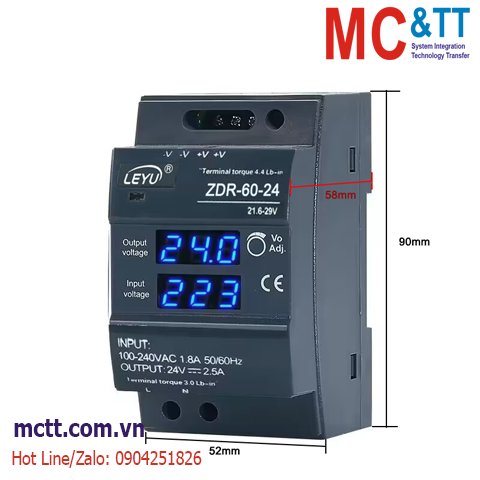

Product size

52.5 * 90 * 54.5 mm（L* W* H）

package

0.19 kg/ pcs
