Bộ đổi nguồn AC/DC Din-Rail MCTT-ZDR-100-36 100W, 36VDC, 2.7A

Model

ZDR-100-12

ZDR-100-15

ZDR-100-24

ZDR-100-36

ZDR-100-48

Dc output voltage

12V

15V

24V

36V

48V

Rated current

7.5A

6.5A

4.2A

2.7A

2.1A

Current range

0-7.5A

0-6.5A

0-4.2A

0-2.7A

0-2.1A

Rated power

90W

97W

100W

100W

100W

Ripple & Noise (Max)

150mVp-p

150mVp-p

200mVp-p

220mVp-p

240mVp-p

Voltage regulation

range

10.9-13.2V

13.6-16.5V

21.8-26.4V

32.7-39.6V

43.6-52.8V

Voltage accuracy

±1%

±1%

±1%

±1%

±1%

Linear adjustment

rate

±1%

±1%

±1%

±1%

±1%

Load adjustment rate

±1%

±1%

±1%

±1%

±1%

Start & rise time

2000mS，30mS/115VAC(Full load）；1000mS，30mS/230VAC

Holding time

30mS/230VAC(Full load）10mS/115VAC(Full load）

Input voltage

85-264VAC     120-370VDC

Input frequency

47-63Hz

Efficiency

87%

87%

88%

88%

88%

Input current

3A/115VAC1.6/230VAC

Power factor

0.65/230VAC(Full load）

Inrush current

70A/230VAC（Cold start）

Leakage current

Overload protection

110%-150% of rated power

Protection mode: hiccup protection, automatically recovered after abnormal conditions

are removed

Over-current protection

110%-150% of the rated current

Protection mode: hiccup protection, automatically recovered after abnormal conditions

are removed

Short circuit protection

Output positive negative short circuit

Protection mode: hiccup protection, automatically recovered after abnormal conditions

are removed

Operating

-30℃~70℃ (refer to derating curve)

temperature

Working humidity

20~90%RH no condensation

Store

temperature/humidity

-40℃ to 85℃10~95%RH, no condensation

Vibration resistance

10~500HZ, 5G10 minutes/cycle,X, Y, Z 60 minutes each

Withstand voltage

Input to output :800VAC

Insulation impedance

Input to output :100MOhms/500VDC/25℃/70%RH

Safety specification

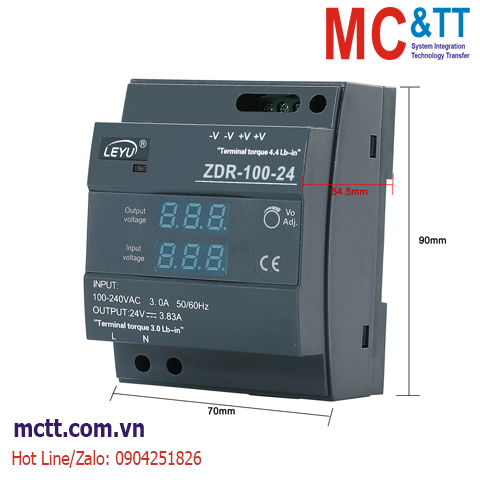

Product size

70*90*54.5mm（W*H*D）

package

0.25kg/pcs
