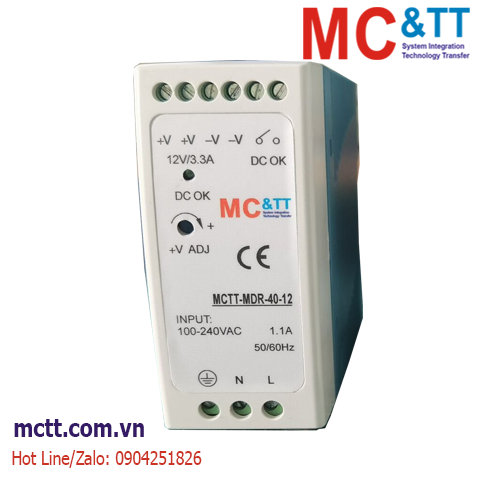

Bộ đổi nguồn Din-Rail MCTT-MDR-40-12 40W, 12VDC, 3.3A

OUTPUT

Model

MCTT-MDR-40-5

MCTT-MDR-40-12

MCTT-MDR-40-24

MCTT-MDR-40-48

DC Voltage

5V

12V

24V

48V

Rated Current

6A

3.33A

1.7A

0.83A

Current Range

0~6A

0~3.33A

0~1.7A

0~0.83A

Rated Power

30W

40W

40.8W

39.8W

Ripple & Noise

80mVp-p

120mVp-p

150mVp-p

200mVp-p

Voltage Adj. Range

5~6V

12~15V

24~30V

48~56V

Voltage Tolerance

±2%

±1%

±1%

±1%

Setup, Rise Time

500ms,30ms/230VAC; 500ms,30ms/115VAC at full load

Hold Up Time

50ms/230VAC; 20ms/115VAC at full load

INPUT

Voltage Range

85~264VAC (47~63Hz); 120~370VDC

AC Current

1.1A/115V; 0.7A/ 230V

Efficiency

78%

85%

88%

88%

Inrush Current

Cold start, 30A at 115VAC, 60A at 230VAC

Leakage Current

<1mA/240VAC

PROTECTION

Over Load

105%~150%

Protection type: Constant current limiting, recovers automatically after fault condition is removed

Over Voltage

115%~135%

Protection type: Shut down o/p voltage, re-power on to recover

Function

DC OK Signal

Relay contact rating (max.): 30V/1A resistive

Environment

Working Temp.

-20 ~ +70℃ (Refer to “Derating Curve”)

Working Humidity

20 ~ 90% RH non-condensing

Storage Temp., Humidity

-40 ~ +85℃, 10 ~ 95% RH

Temp. Coefficient

±0.03%/℃ (0 ~ 50℃)

Vibration

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

Safety

Safety Standards

UI508, TUV EN60950-1, UL60950-1 approved, NEC class 2 compliant

Withstand Voltage

I/P-O/P:3KVAC, I/P-FG:2KVAC, 1minute

EMC standards

EN55022 class B, EN61000-3-2,-3, ENV50204, EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 heavy industry level

Others

Dimension

40*90*100mm (L*W*H)

Weight

0.26Kg

Connection

I/P: 3 poles, O/P: 6 poles screw DIN terminal

Note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance: includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
