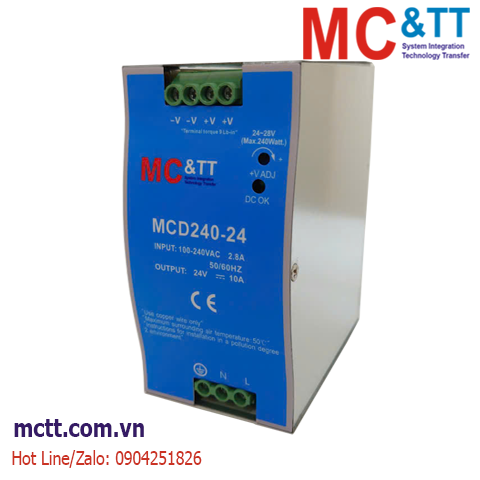

Bộ đổi nguồn Din-Rail MCTT MCD240-24 240W, 24VDC, 10A
MCD240 series is one economical slim 240W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 63mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current.
In MDC240 is designed with metal housing that enhances the unit’s power dissipation. With working efficiency up to 85%, the product can operate at the ambient temperature between -10°C and 70°C under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV EN60950-1, and etc.) make MDC240 a very competitive power supply solution for industrial applications.
Tính năng
- Universal AC input/ Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- LED indicator for power on
- Can be installed on Din-rail TS-35/7.5 or 15
- 100% full load burn-in test
- Fixed switching frequency at 100KHz
Thông số kỹ thuật
|
Model |
MCD240-24 |
MCD240-48 |
|
Output |
DC Voltage |
24V |
48V |
|
Rated Current |
10A |
5A |
|
Current Range |
0~10A |
0~5A |
|
Rated Power |
240W |
240W |
|
Ripple & Noise |
150mVp-p |
150mVp-p |
|
Voltage Adj. Range |
24~28V |
48~55V |
|
Voltage Tolerance |
±1.0% |
±1.0% |
|
Line Regulation |
±0.5% |
±0.5% |
|
Load Regulation |
±1.0% |
±1.0% |
|
Setup, Rise Time |
1500ms, 100ms/230VAC; 3000ms, 100ms/115VAC at full load |
|
Hold Up Time |
28ms/230VAC; 22ms/115VAC at full load |
|
Input |
Voltage Range |
90 ~ 264 VAC
120 ~ 370VDC |
|
Frequency Range |
47 ~ 63Hz |
|
Efficiency |
88.5% |
90% |
|
AC Current |
2.5A/115VAC; 1.3A/230VAC |
|
Inrush Current |
Cold start 20A at 115VAC, 35A at 230VAC |
|
Leakage Current |
<1mA / 240VAC |
|
Protection |
Over Load |
105 ~ 130% |
|
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
|
Over Voltage |
29~33V |
56~65V |
|
Protection type: shut down o/p voltage, re-power on to recover |
|
Over Temperature |
Shut down o/p voltage, recovers automatically after temperature goes down |
|
Environment |
Working Temp. |
-20 ~ +70℃ |
|
Working Humidity |
20 ~ 90% RH non-condensing |
|
Storage Temp., Humidity |
-40 ~ +85℃, 10 ~ 95% RH |
|
Temp. Coefficient |
±0.03%/℃ (0 ~ 50℃) |
|
Vibration |
Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
Mounting: Compliance to IEC60068-2-6 |
|
Safety & EMC |
Safety Standards |
Design refer to UL508,UL60950-1, TUV EN60950-1 |
|
Withstand Voltage |
I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 0.5KVAC |
|
Isolation Resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH |
|
EMC standards |
Compliance to EN55011, EN55022, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, ENV50204, EN55024, EN61000-6-2 (EN50082-2) |
|
Others |
Dimension |
63*125.2*113.5mm (L*W*H) |
|
Weight |
1.0kg |
|
Connection |
I/P: 3 poles, O/P: 4 poles screw DIN terminal |
|
Note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
