Module RS-485 Modbus RTU 8 kênh đầu ra Relay ICP DAS M-7068D-G CR

Features

  • 4 Form A and 4 Form C Signal Relay Outputs
  • Configurable Power-on Value and Safe Value Settings
  • Built-in Dual Watchdog

Introduction

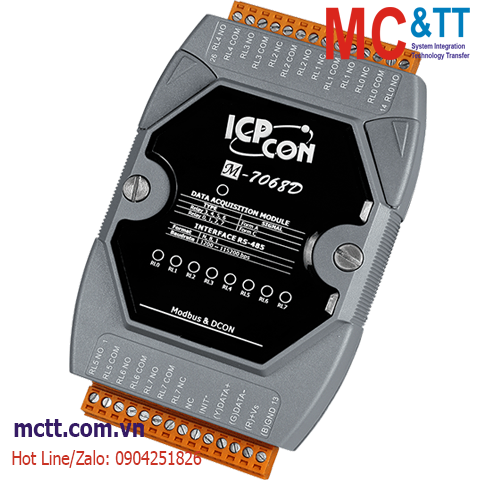

The M-7068/M-7068D provides 4 Form A signal relay output channels and 4 Form C signal relay output channels, while The M-7069/M-7069D provides 4 Form A power relay output channels and 4 Form C power relay output channels. The M-7068D/M-7069D includes 8 LED indicators for channel status monitoring.

The M-7068(D)/M-7069(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 4 kV ESD, 4 kV EFT and 3 kV surge protection are also provided to enhance noise protection capabilities in industrial environments. The M-7068(D) is the ideal solution for small signal-switching applications, while The M-7069(D) is the perfect solution for high-power applications.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Display
Type I/O LED Indicator
Isolation
Intra-module Isolation 2000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for 8 Relay and Power Line
±2 kV for RS-485 Port Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
Surge (IEC 61000-4-5) ±3 kV for Power Line
LED Indicators
Status 1 x Power and Communication
8 x Relay Output
Relay Output
Channels 8 (4 x Form A, 4 x Form C)
Type Signal Relay
Contact Material Silver Nickel, Gold-covered
Contact Rating Form A:
2 A @ 30 VDC
0.24 A @ 220 VDC
0.25 A @ 250 VAC
Form C:
2 A @ 30 VDC
0.24 A @ 220 VDC
0.25 A @ 250 VAC
Operate Time 3 ms (typical)
Release Time 4 ms (typical)
Electrical Endurance 2 x 10^5 ops.
Mechanical Endurance 1 x 10^8 ops.
Surge Strength 2000 VDC
Power on Value Programmable
Safe Value Programmable
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol Modbus RTU, DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 2.0 W (Max.)
Mechanical
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

M-7068D-G     CR  8-ch Signal Relay (4x Form A and 4x Form C) Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS)
