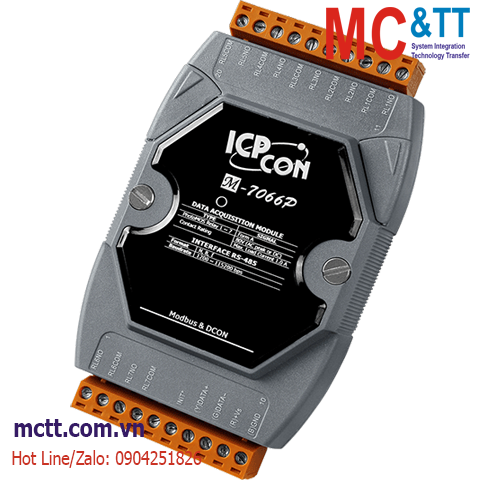

Module RS-485 Modbus RTU 7 kênh đầu ra Photo-Mos Relay ICP DAS M-7066P-G CR

Chia sẻ:
Mã sản phẩm: M-7066P-G
Thương hiệu: ICP DAS
Tình trạng:

7-ch PhotoMos (1 A @ 80 V) Relay Module

Liên hệ
Mô tả

Module RS-485 Modbus RTU 7 kênh đầu ra Photo-Mos Relay ICP DAS M-7066P-G CR


  • PhotoMOS Relay: 1 A @ 80 V (AC peck or DC)
  • 7 PhotoMOS Relay Output
  • No Arcing, No Bounce, and No Switching Noise
  • Photocoupler Isolation
  • Configurable Power-on Value and Safe Value Settings
  • Built-in Dual Watchdog


M-7066P/M-7066PD provides 7 Form A PhotoMOS relay output channels. In comparison to electromechanical relays, the PhotoMOS relays provide a faster response time, greater electrical endurance, and higher vibration and shock resistance. There is also no arcing, no bounce, and no switching noise for the PhotoMOS relay. M-7066PD provides 7 LED indicators for channel status monitoring.

M-7066P(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 4 kV ESD protection and 2000 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments.


• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment


CPU Module
Watchdog Timer Module, Communication (Programmable)
Intra-module Isolation 2000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for 8 Relay and Power Line
±2 kV for RS-485 Port Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status 1 x Power and Communication
Relay Output
Channels 7 (Form A)
Type PhotoMOS Relay
Contact Rating Form A:
80 V (AC peck or DC) @ 1 A
0.24 A @ 220 VDC
0.25 A @ 250 VAC
Leakage Current 1 uA
Operate Time 5 ms (Max.)
Release Time 0.2 ms (Max.)
Electrical Endurance Long Life, And No Arcing, No Bounce, And No Switching Noise
Power on Value Programmable
Safe Value Programmable
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol Modbus RTU, DCON
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 0.5 W
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail Mounting
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing




Ordering Information

M-7066P-G     CR  7-ch PhotoMos (1 A @ 80 V) Relay Module using DCON and Modbus Protocols (Gray Cover) (RoHS)
