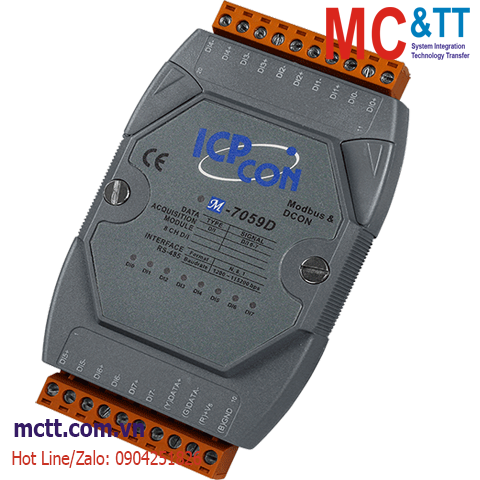

Module RS-485 Modbus RTU 8 kênh đầu vào số DI AC/DC ICP DAS M-7059D-G CR
Features
- Supports AC/DC Digital Input
- 8 Differential Digital Inputs
- All Channels Can be Used as 16-bit Counters
- Channel-to-Channel Isolation
- Built-in Dual Watchdog
Introduction
M-7059/M-7059D offers 8 differential channels for AC/DC digital input, each of which features channel-to-channel photocoupler isolation. All digital input channels are also able to be used as 16-bit counters. M-7059D module has 8 LED indicators for channel status monitoring. ESD protection of ±4 kV and 3750 VDC intra-module isolation are standard. M-7059(D) supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as I-7059(D).
Applications
• All Types of ON/OFF Control
• Building Automation
• Industrial Automation
• Industrial Machinery
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Display |
| Type |
I/O LED Indicator |
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication |
| Digital Input/Counter |
| Channels |
8 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
10 ~ 80 VAC
±15 ~ ±80 VDC |
| OFF Voltage Level |
3 VAC Max.
±3 VDC Max. |
| Max. Counts |
65535 (16-bit) |
| Min. Pulse Width |
5 ms |
| Input Impedance |
10 kΩ |
| Overvoltage Protection |
120 VAC/VDC Max. |
| Channel-to-Channel Isolation |
±2 kV |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol |
Modbus RTU, DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.0 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| M-7059D-G CR |
8-ch Isolated (Wet, 10~80 VAC/±15~±80 VDC) DI Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS) |
