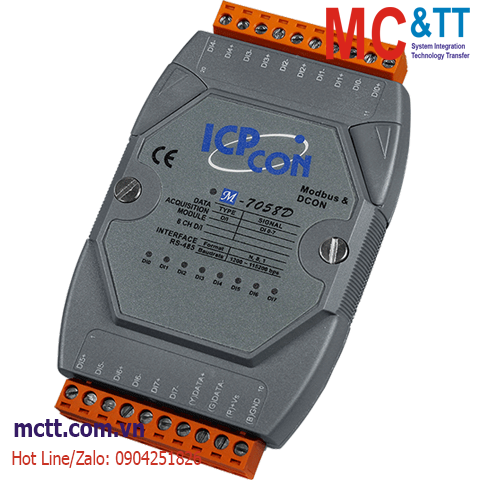

Module RS-485 Modbus RTU 8 kênh đầu vào số DI AC/DC ICP DAS M-7058D-G CR

Chia sẻ:
Mã sản phẩm: M-7058D-G
Thương hiệu: ICP DAS
Tình trạng:

8-ch Isolated (Wet, 80~250 VAC/±100~±250 VDC) DI Module with LED Display

Liên hệ
Mô tả

Module RS-485 Modbus RTU 8 kênh đầu vào số DI AC/DC ICP DAS M-7058D-G CR

Features

  • Supports AC/DC Digital Input
  • 8 Differential Digital Inputs
  • High Over-voltage Input Protection
  • All Channels Can be Used as 16-bit Counters
  • Channel-to-Channel Isolation
  • Built-in Dual Watchdog

Introduction

M-7058/M-7058D offers 8 differential channels for AC/DC digital input, each of which features channel-to-channel photocoupler isolation. All DI channels are also able to be used as 16-bit counters. M-7058D has 8 LED indicators for channel status monitoring. ESD protection of ±4 kV and 3750 VDC intra-module isolation are standard. M-7058(D) supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as I-7058(D).

Applications

• All Types of ON/OFF Control
• Building Automation
• Industrial Automation
• Industrial Machinery
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Display
Type I/O LED Indicator
Isolation
Intra-module Isolation 3750 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status 1 x Power and Communication
8 x Digital Input
Digital Input/Counter
Channels 8
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level 80 ~ 250 VAC
±80 ~ ±250 VDC
OFF Voltage Level 30 VAC Max.
±30 VDC Max.
Max. Counts 65535 (16-bit)
Min. Pulse Width 5 ms
Input Impedance 68 kΩ
Overvoltage Protection 300 VAC/VDC Max.
Channel-to-Channel Isolation ±2 kV
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol Modbus RTU, DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.0 W
Mechanical
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

M-7058D-G     CR  8-ch Isolated (Wet, 80~250 VAC/±100~±250VDC) DI Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS)
