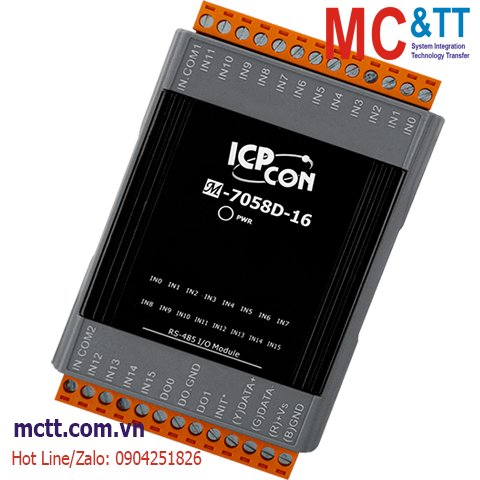

Module RS-485 Modbus RTU 16 kênh đầu vào số DI + 2 kênh đầu ra số DO ICP DAS M-7058D-16-G CR

Chia sẻ:
Mã sản phẩm: M-7058D-16-G
Thương hiệu: ICP DAS
Tình trạng:

16-ch Isolated (Wet, 80~250 VAC/±100~±250 VDC) DI and 2-ch (Sink, NPN) DO Module with LED Display

Liên hệ
Mô tả

Module RS-485 Modbus RTU 16 kênh đầu vào số DI + 2 kênh đầu ra số DO ICP DAS M-7058D-16-G CR

Features

  • Supports AC/DC Digital Input
  • 16 Digital Inputs and 2 Digital Outputs
  • Digital Input Channels Can be Used as 16-bit Counters
  • Channel-to-Channel Isolation
  • Built-in Dual Watchdog

Introduction

M-7058-16/M-7058D-16 provides 16 channels for AC/DC digital input, each of which features channel-to-channel photocoupler isolation, and two channels for digital output. All digital input channels are also able to be used as 16-bit counters. M-7058D-16 has 16 LED indicators for channel status monitoring. M-7058(D)-16 provides ±4 kV ESD, ±4 kV EFT, and ±2 kV Surge protection, as well as 3750 VDC intra-module isolation to enhance noise protection capabilities in harsh industrial environments.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3750 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
Surge (IEC 61000-4-5) ±2 kV for Power Line
LED Indicators
Status 1 x Power and Communication
16 x Digital Input
Digital Input/Counter
Channels 16
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level 80 ~ 250 VAC
±100 ~ ±250 VDC
OFF Voltage Level 30 VAC Max.
±30 VDC Max.
Max. Counts 65535 (16-bit)
Frequency 100 Hz
Min. Pulse Width 5 ms
Input Impedance 150 kΩ
Overvoltage Protection 300 VAC/VDC Max.
Digital Output
Channels 2
Type Isolated Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +5 ~ +50 VDC
Load Current 600 mA/Channel
Overvoltage Protection 60 VDC
Overload Protection 1.4 A
Short-circuit Protection Yes
Power on Value Programmable
Safe Value Programmable
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol Modbus RTU, DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 0.4 W
Mechanical
Dimensions (mm) 121 x 76 x 42 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

M-7058D-16-G     CR  16-ch Isolated (Wet, 80~250 VAC/±100~±250 VDC) DI and 2-ch (Sink, NPN) DO Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS)
