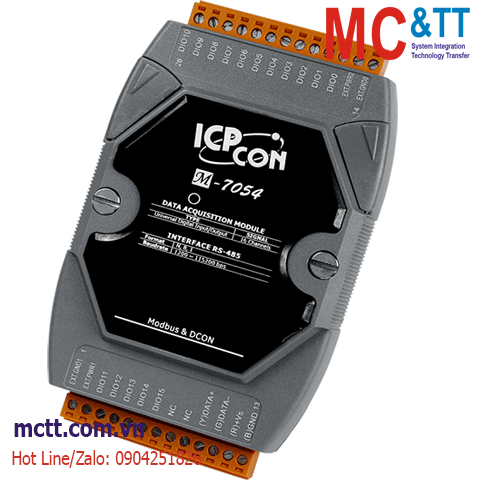

Module RS-485 Modbus RTU 16 kênh đầu vào/ra số DI/DO ICP DAS M-7054-G CR

Features

  • 16 Universal Digital Inputs or Outputs
  • 100 mA Load Current per Channel
  • Digital Input Channels Can be Used as 16-bit Counters
  • Configurable Power-on Value and Safe Value Settings

Introduction

M-7054/M-7054D provides 16 channels for universal digital input or output, which can be selected via wire connections. The digital input channels are dry contact and can be used as 16-bit counters, while the digital output channels are sink-type with short circuit protection. M-7054D has 16 LED indicators for channel status monitoring. M-7054(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. ±4 kV ESD, ±4 kV EFT, and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments.

Applications

• All Types of ON/OFF Control
• Building Automation
• Industrial Automation
• Industrial Machinery
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3750 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
LED Indicators
Status 1 x Power and Communication
Digital Input/Counter
Channels 16-channel Isolated Universal Digital Input/Output (Configurable via Wire Connection)
Type Dry Contact
ON Voltage Level Close to GND
OFF Voltage Level Open
Max. Counts 65535 (16-bit)
Frequency 100 Hz
Min. Pulse Width 10 ms
Overvoltage Protection ±35 VDC
Digital Output
Channels 16-channel Isolated Universal Digital Input/Output (Configurable via Wire Connection)
Type Open Collector
Sink/Source (NPN/PNP) Sink
Load Voltage +5 ~ +30 VDC
Load Current 100 mA
Power on Value Programmable
Safe Value Programmable
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1)
Protocol Modbus RTU, DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 1.2 W
Mechanical
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

M-7054-G     CR  16-ch Isolated Universal DI/DO Module (100 mA Max.), using DCON and Modbus Protocols (Gray Cover) (RoHS)
