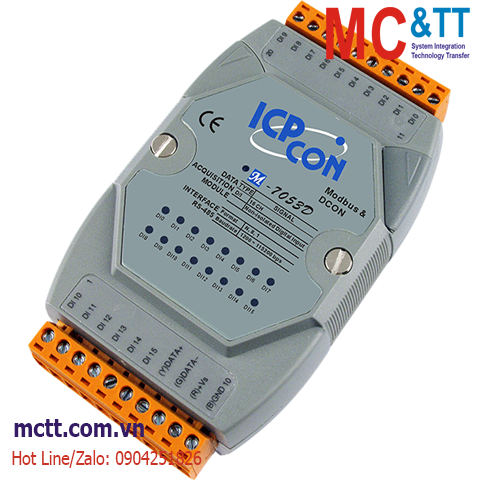

Module RS-485 Modbus RTU 16 kênh đầu vào số DI ICP DAS M-7053D-G CR


  • 16 Source-type Digital Inputs
  • Long Effective Distance
  • Dry Contact Input
  • Non-isolated for All Channels
  • All Channels Can be Used as 16-bit Counters
  • Built-in Dual Watchdog


M-7053/M-7053D features a long effective distance measurement for dry contact digital input of up to 500 meters. The module supports source-type input. All 16 channels are also able to be used as 16-bit counters, each of which is non-isolated. M-7053D has 16 LED indicators for channel status monitoring. M-7053(D) supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as I-7053(D)_FG.


• All Types of ON/OFF Control
• Building Automation
• Industrial Automation
• Industrial Machinery
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems


CPU Module
Watchdog Timer Module, Communication (Programmable)
Type I/O LED Indicator
LED Indicators
Status 1 x Power and Communication
16 x Digital Input
Digital Input/Counter
Channels 16
Type Dry Contact
Sink/Source (NPN/PNP) Source
ON Voltage Level Open
OFF Voltage Level Close to GND
Max. Counts 65535 (16-bit)
Frequency 100 Hz
Min. Pulse Width 5 ms
Effective Distance 500 m Max.
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol Modbus RTU, DCON
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 0.9 W
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail Mounting
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing




Ordering Information

M-7053D-G     CR  16-ch Non-isolated (Dry) DI Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS)
