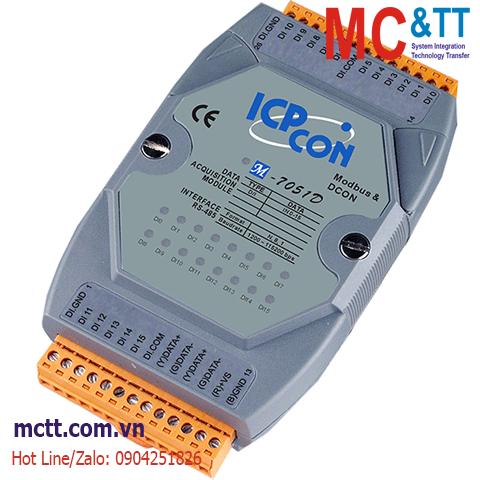

Module RS-485 Modbus RTU 16 kênh đầu vào số DI ICP DAS M-7051D-G CR
Features
- 16 Digital Inputs
- Dry Contact and Wet Contact Selectable via Wire Connections
- Photocoupler Isolation
- Long Distance Measurement
- All Channels Can be Used as 16-bit Counters
- Built-in Dual Watchdog
Introduction
M-7051/M-7051D offers 16 channels for digital input, catering for both dry and wet contact, with an effective distance of up to 500 meters for dry contact. All channels not only feature photocoupler isolation but also be used as 16-bit counters. M-7051D has 16 LED indicators for channel status monitoring. M-7051(D) supports Modbus RTU and DCON protocols, which can be configured via software. 4 kV ESD protection and 3750 VDC intra-module isolation are standard, and all hardware specifications are the same as I-7051(D).
Applications
• All Types of ON/OFF Control
• Building Automation
• Industrial Automation
• Industrial Machinery
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Display |
| Type |
I/O LED Indicator |
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±3 kV for Power Line |
| LED Indicators |
| Status |
1 x Power and Communication
16 x Digital Input |
| Digital Input/Counter |
| Channels |
16 |
| Type |
Dry Contact,
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
Dry: Close to GND
Wet: +10 ~ +50 VDC |
| OFF Voltage Level |
Dry: Open
Wet: +4 VDC Max. |
| Max. Counts |
65535 (16-bit) |
| Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Effective Distance |
500 m Max. |
| Input Impedance |
10 kΩ |
| Overvoltage Protection |
±70 VDC |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol |
Modbus RTU, DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.1 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| M-7051D-G CR |
16-ch Isolated (Dry, Wet) DI Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS) |
