15-ch Isolated (Wet, 3.5~50 VDC) DI Module with LED Display
Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

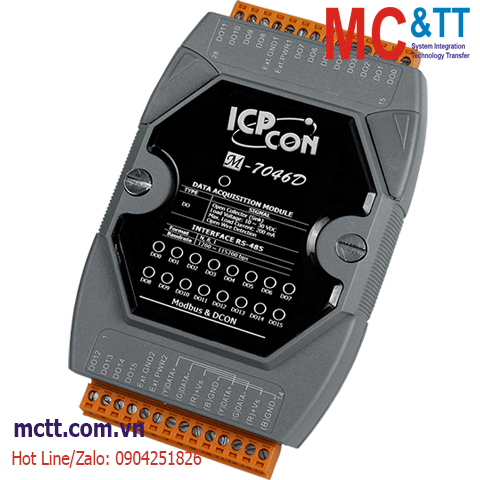

Module RS-485 Modbus RTU 15 kênh đầu vào số DI ICP DAS M-7046D-G CR
Features
Introduction
M-7046/M-7046D is a 15-channel digital input module. Each channel features photocoupler isolation and can be used as a 16-bit counter. In addition, the digital input type can be selected as either sink or source via wire connections. M-7046D module includes 15 LED indicators for channel status monitoring. M-7046(D) provides 8 kV ESD protection and 5000 VDC intra-module isolation to enhance noise protection capabilities in industrial environments, making the module an ideal solution for digital input applications.
Applications
• All Types of ON/OFF Control
• Building Automation
• Industrial Automation
• Industrial Machinery
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems
Specifications
CPU Module | |
---|---|
Watchdog Timer | Module, Communication (Programmable) |
Display | |
---|---|
Type | I/O LED Indicator |
Isolation | |
---|---|
Intra-module Isolation | 5000 VDC |
EMS Protection | |
---|---|
EFT (IEC 61000-4-4) | ±4 kV for Power Line |
ESD (IEC 61000-4-2) | ±8 kV Contact for Each Terminal ±16 kV Air for Random Point |
Surge (IEC 61000-4-5) | ±3 kV for Power Line |
LED Indicators | |
---|---|
Status | 1 x Power and Communication 15 x Digital Input |
Digital Input/Counter | |
---|---|
Channels | 15 |
Type | Wet Contact |
Sink/Source (NPN/PNP) | Sink/Source |
ON Voltage Level | +3.5 ~ +50 VDC |
OFF Voltage Level | +1 VDC Max. |
Max. Counts | 65535 (16-bit) |
Frequency | 100 Hz |
Min. Pulse Width | 5 ms |
Input Impedance | 10 kΩ |
Overvoltage Protection | ±70 VDC |
COM Ports | |
---|---|
Ports | 1 x RS-485 |
Baud Rate | 1200 ~ 115200 bps |
Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
Protocol | Modbus RTU, DCON |
Power | |
---|---|
Reverse Polarity Protection | Yes |
Input Range | +10 ~ +30 VDC |
Consumption | 0.3 W |
Mechanical | |
---|---|
Dimensions (mm) | 123 x 72 x 35 (W x L x H) |
Installation | DIN-Rail Mounting |
Environment | |
---|---|
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -40 ~ +85 °C |
Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering Information
M-7046D-G CR | 15-ch Isolated (Wet, 3.5~50 VDC) DI Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS) |
