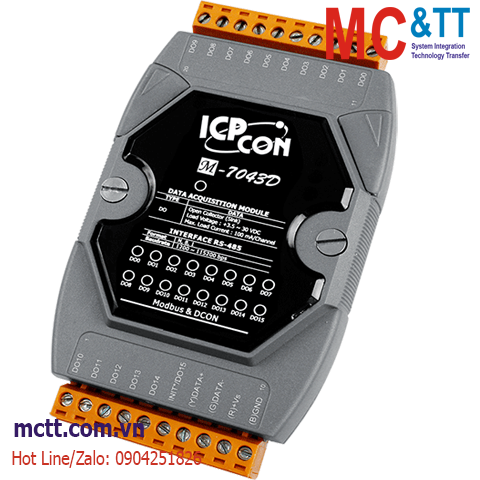

Module RS-485 Modbus RTU 16 kênh đầu ra số DO ICP DAS M-7043D-G CR
Features
- 16 Open Collector Outputs
- Non-isolated for All Channels
- Sink-type Digital Output
- Configurable Power-on Value and Safe Value Settings
- Built-in Dual Watchdog
Introduction
M-7043/M-7043D offers 16 digital output channels, each of which is non-isolated and supports the sink-type output using an open collector. M-7043D has 16 LED indicators for channel status monitoring. M-7043(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. All hardware specifications are the same as I-7043(D).
Applications
• All Types of ON/OFF Control
• Building Automation
• Industrial Automation
• Industrial Machinery
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Display |
| Type |
I/O LED Indicator |
| LED Indicators |
| Status |
1 x Power and Communication
16 x Digital Output |
| Digital Output |
| Channels |
16 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+10 ~ +30 VDC |
| Load Current |
100 mA/Channel |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol |
Modbus RTU, DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.1 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| M-7043D-G CR |
16-ch Non-isolated (Sink, NPN, 10~30 VDC) DO Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS) |
