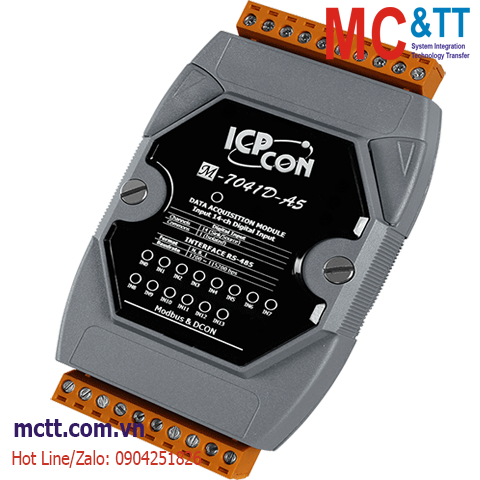

Module RS-485 Modbus RTU 14 kênh đầu vào số DI ICP DAS M-7041D-A5-G CR
Features
- 150V High Voltage Digital Inputs
- Sink- or Source-type Digital Input
- Photocoupler Isolation
- All Channels Can be Used as 16-bit Counters
- Built-in Dual Watchdog
Introduction
M-7041-A5/M-7041D-A5 provides 14 channels for high-voltage digital input, each of which features photocoupler isolation. The input voltage level can be up to 150 V. Either sink- or source-type inputs can be selected via wire connections, and all channels can be used as 16-bit counters. M-7041D-A5 has 14 LED indicators for channel status monitoring. M-7041(D)-A5 support both Modbus RTU and DCON protocols, which can be configured via software. 4 kV ESD protection and 3750 VDC intra-module isolation are standard.
Applications
• All Types of ON/OFF Control
• Building Automation
• Industrial Automation
• Industrial Machinery
• Food and Beverage Systems
• Semiconductor Fabrication
• Control Systems
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Display |
| Type |
I/O LED Indicator |
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV, ±2 kV for the RS-485 Port |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication
14 x Digital Input |
| Digital Input/Counter |
| Channels |
14 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
+68 ~ +150 VDC |
| OFF Voltage Level |
+48 VDC Max. |
| Max. Counts |
65535 (16-bit) |
| Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Input Impedance |
50 kΩ |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1) |
| Protocol |
Modbus RTU, DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.0 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| M-7041D-A5-G CR |
14-ch High Voltage (Wet, 68~150 VDC), Isolated DI Module with LED Display, using DCON and Modbus Protocols (Gray Cover) (RoHS) |
