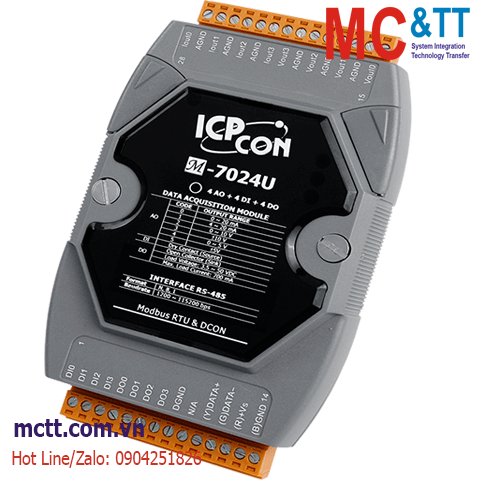

Module RS-485 Modbus RTU 4 kênh đầu ra tương tự AO +4 kênh DI+ 4 kênh DO ICP DAS M-7024U-G CR
Features
- Multi-function (4 AO, 4 DI, and 4 DO)
- Source-type Current Output
- 16-bit Analog Output
- Individual Channel Configuration
- Open Wire Detection for Current Output
- Configurable Power-on Value and Safe Value Settings
Introduction
M-7024U/M-7024UD is a multi-function module that includes 4 analog output channels, 4 digital input channels, and 4 digital output channels. It provides a programmable output range on all analog output channels (0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V, +4 ~ +20 mA, or 0 ~ +20 mA). Each analog output channel can be configured for an individual range. M-7024UD has 12 LED indicators for channel status monitoring. M-7024U(D) supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. The module also features per-channel open wire detection for +4 ~ +20 mA outputs, together with 8 kV ESD protection as well as 2500 VDC intra-module isolation.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±8 kV Contact for Each Terminal |
| LED Indicators |
| Status |
1 x Power and Communication
4 x Analog Input
4 x Digital Input
4 x Digital Output |
| Analog Output |
| Channels |
4 |
| Type |
Voltage
Current |
| Range |
0 ~+5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC, 0 ~ +20 mA, +4 ~ +20 mA |
| Resolution |
16-bit |
| Accuracy |
±0.02% of FSR |
| Short Circuit Protection |
Yes |
| DA Output Response Time |
10 ms per channel |
| Programmable Output Slope |
Voltage: 0.0625 ~ 512 V/Second
Current: 0.125 ~ 1024 mA/Second |
| Current Output Wiring |
Source |
| Open Wire Detection |
for 4 ~ 20 mA only |
| Current Load Resistance |
1000 Ω |
| Power-on Value |
Programmable |
| Safe Value |
Programmable |
| Digital Input/Counter |
| Channels |
4 |
| Type |
Dry Contact
Wet Contact |
| ON Voltage Level |
Dry: Close to GND
Wet: +1 VDC Max. |
| OFF Voltage Level |
Dry: Open
Wet: +4 ~ +30 VDC |
| Max. Counts |
65535 (16-bit) |
| Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Effective Distance |
500 m Max. |
| Overvoltage Protection |
+60 VDC |
| Digital Output |
| Channels |
4 |
| Type |
Open Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+3.5 ~ +50 VDC |
| Load Current |
700 mA/Channel |
| Overvoltage Protection |
60 VDC |
| Overload Protection |
1.4 A |
| Short-circuit Protection |
Yes |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol |
Modbus RTU, DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
4 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| M-7024U-G CR |
4-ch 16-bit AO Module with 4 DI and 4 DO using DCON and Modbus Protocols (Gray Cover) (RoHS) |
