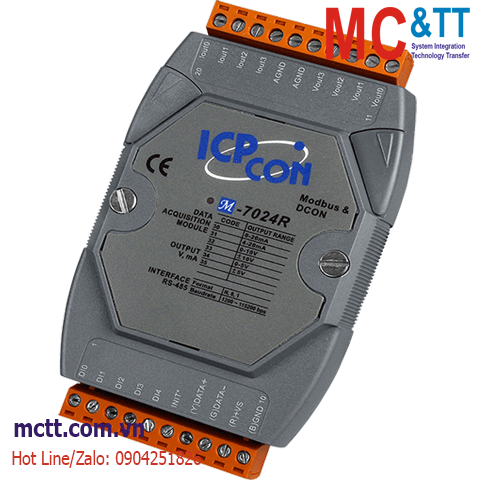

Module RS-485 Modbus RTU 4 kênh đầu ra tương tự AO +5 kênh DI ICP DAS M-7024R-G CR
Features
- 4 Analog Outputs and 5 Digital Inputs
- Software Selectable Current or Voltage Output
- Configurable Power-on Value and Safe Value Settings
- Programmable Output Slope
- Built-in Dual Watchdog
Introduction
M-7024R is a multi-function module that includes 4-channel analog output channels and 5-channel digital input channels. The module provides current and voltage outputs and features 4 kV ESD protection and 3000 VDC intra-module isolation. M-7024R supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. All hardware specifications are the same as I-7024R.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal |
| RS Immunity (IEC 61000-4-3) |
5 V/m, 80 MHz ~ 1GHz |
| LED Indicators |
| Status |
1 x Power and Communication |
| Analog Output |
| Channels |
4 |
| Type |
Voltage
Current |
| Range |
Voltage: 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V
Current: 0 ~ 20 mA, 4 ~ 20 mA |
| Resolution |
14-bit |
| Accuracy |
±0.1% of FSR |
| Short Circuit Protection |
Yes |
| DA Output Response Time |
10 ms |
| Power-on Value |
Programmable |
| Safe Value |
Programmable |
| Digital Input/Counter |
| Channels |
5 |
| Type |
Dry Contact |
| Sink/Source (NPN/PNP) |
Source |
| ON Voltage Level |
Close to GND |
| OFF Voltage Level |
Open |
| Max. Counts |
65535 (16-bit) |
| Frequency |
50 Hz |
| Min. Pulse Width |
10 ms |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol |
Modbus RTU, DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
3.2 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| M-7024R-G CR |
4-ch 14-bit AO Module with 5-ch DI using DCON and Modbus Protocols (Gray Cover) (RoHS) |
