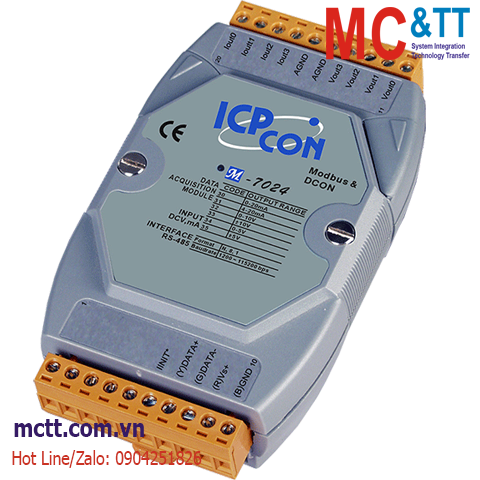

Module RS-485 Modbus RTU 4 kênh đầu ra tương tự AO ICP DAS M-7024-G CR
Features
- 2 Analog Outputs
- Software Selectable Current or Voltage Output
- Configurable Power-on Value and Safe Value Settings
- Open Wire Detection for Current Output
- Readback Voltage or Current
- Programmable Output Slope
- Built-in Dual Watchdog
Introduction
M-7024 is a 14-bit, 4-channel analog output module that provides current and voltage outputs. The module features 3000 VDC intra-module isolation. M-7024 supports Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. All hardware specifications are the same as I-7024.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| ESD (IEC 61000-4-2) |
±2 kV Contact for Each Terminal |
| LED Indicators |
| Status |
1 x Power and Communication |
| Analog Output |
| Channels |
4 |
| Type |
Voltage
Current |
| Range |
Voltage: 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V
Current: 0 ~ 20 mA, 4 ~ 20 mA |
| Resolution |
14-bit |
| Accuracy |
±0.1% of FSR |
| Short Circuit Protection |
Yes |
| DA Output Response Time |
10 ms |
| Power-on Value |
Programmable |
| Safe Value |
Programmable |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol |
Modbus RTU, DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
2.4 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| M-7024-G CR |
4-ch 14-bit AO Module using DCON and Modbus Protocols (Gray Cover) (RoHS) |
