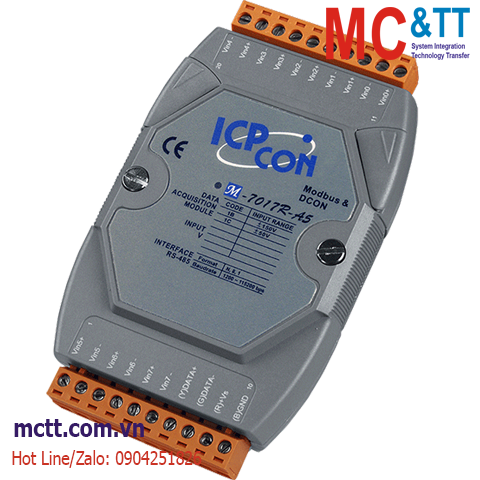

Module RS-485 Modbus RTU 8 kênh đầu vào tương tự AI ICP DAS M-7017R-A5-G CR
Features
- High Voltage Input
- ±200 VDC Overvoltage Protectiont
- Adjustable Sampling Rate (Fast/Normal Mode)
- Built-in Dual Watchdog
Introduction
M-7017R-A5 is an 8-channel analog input module that is specially designed for high voltage input and has an input range of between -50 V ~ +50 V or -150 V ~ +150 V. The sampling rate of M-7017R-A5 is adjustable, meaning that either fast mode or normal mode can be set. M-7017R-A5 also has 4 kV ESD protection as well as 3000 VDC intra-module isolation. M-7017R-A5 supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as I-7017R-A5.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal |
| Surge (IEC 61000-4-5) |
±0.5 kV for Power Line |
| LED Indicators |
| Status |
1 x Power and Communication |
| Analog Input |
| Channels |
8 Differential |
| Type |
Voltage |
| Range |
±50 V, ±150 V |
| Resolution |
16-bit |
| Accuracy |
Normal Mode: 0.1% of FSR
Fast Mode: 0.5% of FSR |
| Sampling Rate |
Normal Mode: 10 Hz
Fast Mode: 50 Hz |
| Input Impedance |
Voltage: 290 kΩ |
| Common Voltage Protection |
±200 VDC |
| Overvoltage Protection |
±200 VDC |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1) |
| Protocol |
Modbus RTU, DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.6 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| M-7017R-A5-G CR |
8-ch High Voltage (±50 V, ±150 V) AI Module with High Voltage Protection using DCON and Modbus Protocols (Gray Cover) (RoHS) |
