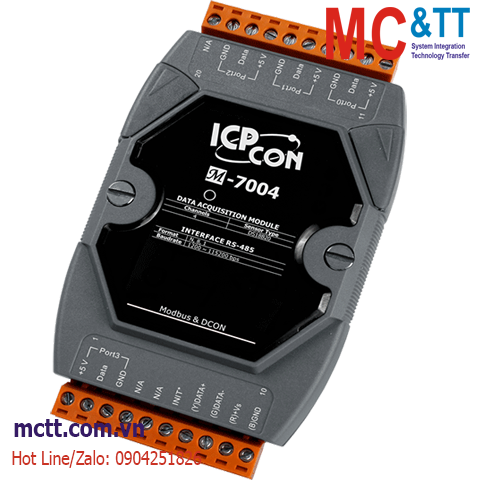

Module RS-485 Modbus RTU 4 kênh đầu vào nhiệt độ DS18B20 với Daisy-Chain ICP DAS M-7004-G CR
Features
- 4-Port DS18B20 Sensor Input Module
- 2/3-wire DS18B20 Wire Connection
- Up to 20 Sensors per Port
- Up to 100 Meters per Port when Using Daisy-Chain Wiring
Introduction

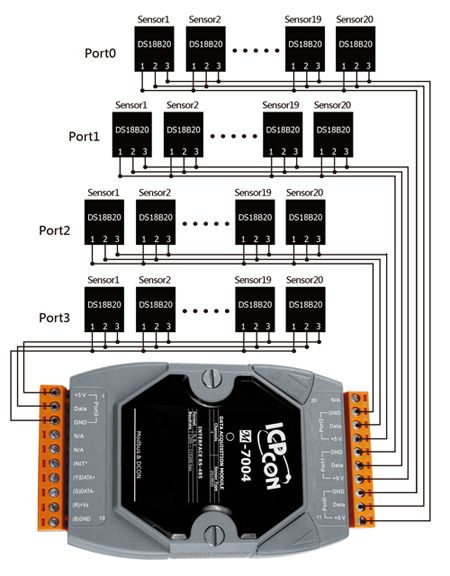

M-7004 is a digital temperature sensor module that provides four ports for 2- or 3-wire DS18B20 digital temperature sensor input. The DS18B20 temperature sensor has a high accuracy of ±0.5°C when measuring temperatures between -10 and + 85°C, with a total measurement range of between -55 and +125°C. Up to 20 DS18B20 sensors can be connected to each port on the M-7004 module in a daisy-chain arrangement with a maximum wiring distance of 100 meters. M-7004 is fully RoHS compliant and features 4 kV ESD protection as well as 3000 VDC intra-module isolation.
Applications
• Temperature Measurement
• Environment Monitoring
• Tunnel Monitoring
• Building Monitoring
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3000 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for Each Terminal
±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| LED Indicators |
| Status |
1 x Power and Communication |
| Temperature Measurement |
| Range |
-55 °C ~ +125 °C |
| Analog Input |
| Channels |
4 |
| Sensor Type |
DS18B20 |
| Sensors per Ports |
20 |
| Sensor Wiring Cables Length |
Max. 100 m per Port |
| Resolution |
12-bit |
| Accuracy |
±0.5 °C (See Note 1) |
| Sampling Rate |
1 Hz |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol |
Modbus RTU, DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +48 VDC |
| Consumption |
0.5 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| M-7004-G CR |
4-Port DS18B20 Digital Temperature Sensor Module with Daisy-Chain Wiring using DCON and Modbus Protocols (Gray Cover) (RoHS) |
