Module RS-485 Modbus RTU 16 kênh đầu vào tương tự AI ICP DAS M-6018-16 CR

Chia sẻ:
Mã sản phẩm: M-6018-16
Thương hiệu: ICP DAS
Tình trạng:

16-channel Universal Analog Input Module

Liên hệ
Mô tả

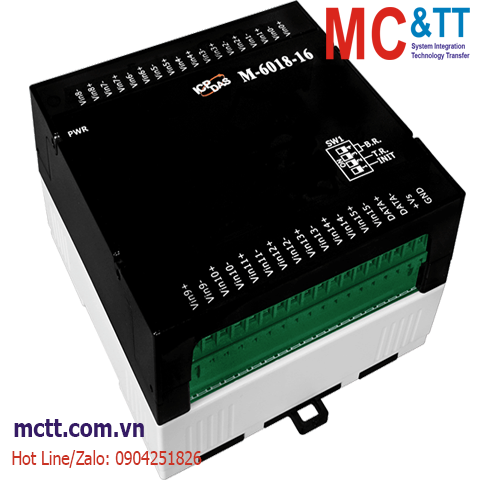

Module RS-485 Modbus RTU 16 kênh đầu vào tương tự AI ICP DAS M-6018-16 CR

Features

  • 16-channel Differential Analog Input
  • Current, Voltage or Thermocouple Input
  • Adjustable CJC Offset
  • Open Thermocouple Detection
  • Dual Watchdog

Introduction

The M-6018-16 is an analog input module that includes 16 diff erential analog input channels. The voltage input range can be from ±15 mV to ±2.5 V, the current input range can be either +4 to +20 mA, 0 to +20 mA, or ±20 mA, and types J, K, T, E, R, S, B, N, C, L, M, LDIN43710 thermocouple can be used for the thermocouple input. Overvoltage protection of up to 120 VDC is provided. The module also features per-channel open wire detection for the thermocouple input types, and provides 4 kV ESD protection as well as 3000 VDC intra-module isolation.

Applications

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis
  • Testing Equipment

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
±8 kV Air for Random Point
Surge (IEC 61000-4-5) ±1 kV for Power Line
LED Indicators
Status 1 x Power and Communication
Analog Input
Channels 16 Differential
Sensor Type Thermocouple: J, K, T, E, R, S, B, N, C
Voltage: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V
Current: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (requires an optional external 125 Ω resistor)
Resolution 16-bit
Accuracy 0.1% of FSR
Sampling Rate 10 Hz (Total)
Input Impedance > 400 kΩ
Common Voltage Protection 25 VDC
Overvoltage Protection 120 VDC
Open Wire Detection Yes
COM Ports
Ports 1 x RS-485
Baud Rate 1200 to 115200 bps
Data Format (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Protocol Modbus RTU, DCON
Bias Resistor 1 kΩ (DIP switch selectable)
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +48 VDC
Consumption 0.5 W
Mechanical
Dimensions (mm) 116 x 120 x 64 (W x L x H)
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

M-6018-16     CR  16-channel Thermocouple/Voltage/Current Input Module using the DCON and Modbus Protocols (RoHS)
