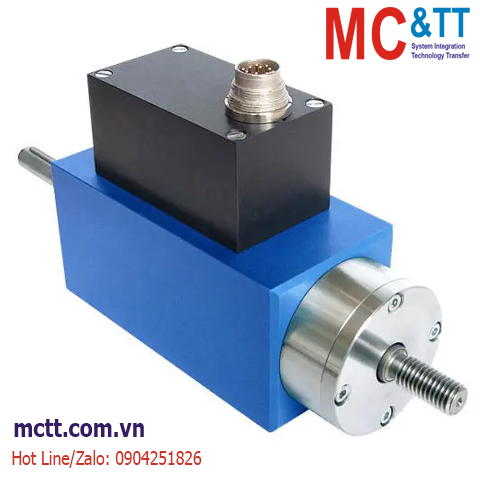

Cảm biến đo Momen xoắn và lực 2 Nm / 100 N 5 Nm / 250 N 5 Nm / 500 N Lorenz M-2371
M-2371, Multi-Component Sensor
The M-2371 multi-component sensor is capable of measuring rotary torque and load forces. Its contactless data transmission makes the unit maintenance-free.
Features:
M-2371 - Specifications
Type | Multi-Axis |
# of Axis | 2 (Fz, Mx) |
Application | Tension & Compression |
Full Scale | 22 lbs |
55 lbs | |
112 lbs | |
Output | 5 V DC |
Precision | ±0.4 % FS |
Excitation | 12 V - 28 V DC |
Min Temperature | 5 °C |
Max Temperature | 45 °C |
Download
Type: | M-2371 |
---|---|
Measuring Range: | 2 N·m / 100 N |
5 N·m / 250 N | |
5 N·m / 500 N | |
Accuracy Class: | 0.4 (F) 0.2 (Mt) |
Speed/Angle Measurement: | ✓ Option |
Range of Application: | Torque -, Force -, Speed-, and Angle of Rotation Measurement; e.g. for Continuous Stress Test of Pumps and Master Key Systems |
Suitable Connection Cable (PDF Datasheet): |
Connection cable, 3 m, with 12-pin female cable connector and free soldered ends |
PDF Datasheet: | 080985_M-2371_en.pdf |
PDF Operation Manual: | - |
CAD Files: | DXF IGS |
