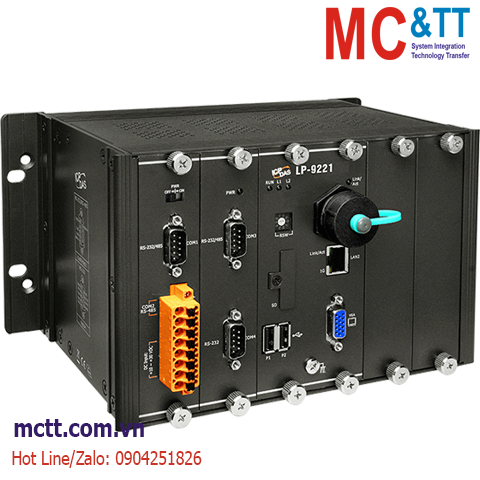

Bộ lập trình nhúng Linux PAC với CPU Cortex-A8 +2 khe cắm module I/O ICP DAS LP-9221 CR

Chia sẻ:
Mã sản phẩm: LP-9221
Thương hiệu: ICP DAS
Tình trạng:

2-slot Linux Based Metal PAC with Cortex-A8 CPU

Liên hệ
Mô tả

Bộ lập trình nhúng Linux PAC với CPU Cortex-A8 +2 khe cắm module I/O ICP DAS LP-9221 CR

Features

• Cortex-A8 (1.0 GHz) CPU
• Linux kernel 3.2.14 Inside
• Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
• 64-bit Hardware Serial Number
• Rich I/O Expansion Ability: RS-232, RS-485, USB, FRnet, CAN
• 2 10/100/1000M Ethernet Ports
• 4 Serial Ports (RS-232/485)
• Redundant Power Inputs

Introduction

The LP-9x2x is the new generation Linux based PAC (Programmable Automation Controller) of ICP DAS. Each LP-9x2x is equipped with a Cortex-A8 (1.0 GHz) CPU running a Linux operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 2 expansion I/O slots that can be used to integrate high performance I-9K (parallel-type) and I-97K (serial-type) series I/O modules. User's programs can be saved in external storage device, such as SD Card or USB mass storage device.

LinPAC SDK is provided for users to develop LinPAC I/O applications rapidly and easily when I-7000/9000/97k series I/O modules are used in the LinPAC. Users can develop LinPAC applications by using GNU C Language. In the meanwhile, all kinds of servers and functions built-in make the LinPAC more powerful and users will be able to operate LinPAC to achieve their own project smoothly

Application

https://mctt.vn/lp-9000-icp-das

Specifications

Software
OS Linux Kernel 3.2.14
Service FTP server, Web server (supports VB script, JAVA script), Embedded SQL server
SDK LinPAC SDK (GCC based toolchain and LinPAC Libraries)
Main Unit
CPU Cortex-A8, 1 GHz
64-bit Hardware Serial Number Yes, for Software Copy Protection
System Memory 512 MB DDR3 SDRAM
Storage • Flash 512 MB
• microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card)
Non-Volatile Memory • MRAM 128 KB
• EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles)
Real Time Clock Yes (Provide seconds, minutes, hours, day of week, month, year)
Watchdog Timer Yes, Dual Watchdog Timer
Display
Signal VGA (Analog RGB)
Resolution Up to 1280 x 1024
LED Indicators
Status 1 x Power
1 x Run
2 x Programmable
I/O Expansion
I/O Type I-9K, I-97K series
Slots 2
COM Ports
Ports 1 x RS-232 (3000 VDC, Isolated)
1 x RS-485 (3000 VDC, Isolated)
1 x RS-232/485 (Console, 3000 VDC, Isolated)
1 x RS-232/485 (3000 VDC, Isolated)
HMI
Rotary Switch Yes (0 ~ 9)
Ethernet
Ports 2 x RJ-45, 10/100/1000 Base-TX
USB
Ports 2
Specification USB 2.0 (Host)
Power
Input Range +10 VDC ~ +30 VDC (1 kV Isolated)
Redundant Power Inputs Yes, with one power relay (1 A @ 24 VDC) for alarm
Consumption 10.8 W (0.45 A @ 24 VDC)
Mechanical
Dimensions (mm) 239 x 133 x 164 (W x L x H)
Installation DIN-Rail or Wall Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

LP-9221     CR  2-slot Linux Based PAC with Cortex-A8 CPU. Metal Case (RoHS)
