Bộ lập trình PLC Kinco K204ET-16DT (8*DI, 6*DO, 1*AI, 1*AO, 1*Ethernet, 2*RS485)
Tính năng
K2 PLC is a economic unit of K series (not expandable), basis of K5 series, cost-effective.
- Provide USB programming port, and can be powered by USB debugging, greatly improve the convenience.
- DIO reuse patented technology, the same model can meet more applications.
- 4-Channel high speed counting input, 3-Channel high speed pulse output.
- 2-Channel RS485. baut rate up to 115.2kbps.
- Support for real time clock.
- Compact, saving installation space.
- Transistor DIO(DI、DO Reuse) points
Based on the DIO patent technology of Kinco, K2 CPU module provides DIO point, which can be used as DI or DO, and can be used by wiring without configuration.
MicroUSB programming port is adopted to support USB2.0 and compatible with common MicroUSB mobile phone data cables.
Four high speed pulse counters each high speed counter allows up to 32 PV values to be configured and supports 32 "CV=PV" interrupts.
Support a variety of modes, can be carried out single phase, double phase (Up/Down), AB phase (1 times frequency and 4 times frequency) count.
The maximum counting frequency of CPU205 is 50KHz.The maximum counting frequency of CPU204/209 is 200KHz.
3 high-speed pulse output channels, respectively Q0.0 Q0.1 and Q0.4, all support PTO (pulse train) and PWM (pulse width modulation) mode output.
CPU205 maximum output frequency is 50KHz.CPU204/209 maximum output frequency is 200KHz.
The software provides PLS (PWM or PTO) positioning control instruction group PFLO_F (follow instruction) and so on.
- Serial communication port
CPU module provides two RS485 serial communication ports, named PORT1 and PORT2 respectively, baut rate up to 115.2k.
PORT1 can be used as both a programming interface and Modbus RTU slave station protocol and free communication.
PORT2 support Modbus RTU master protocol, slave protocol and free communication.
Thông số kỹ thuật
| Model |
Order number |
Specification |
| Supply voltage |
DI |
DO |
DIO |
AI |
AO |
High speed input |
High speed output |
COM port |
Extension module |
Dimension
(L*W*H)
(unit:mm) |
| CPU205 |

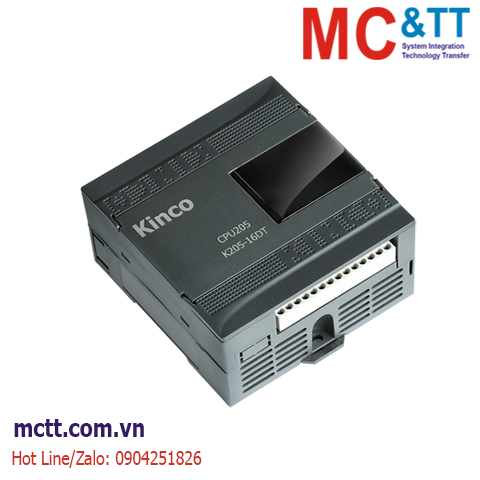

K205-16DR |
DC 24V |
6 |
6*relay |
4 |
None |
Single-phase, 2*up to 50KHz
2*up to 20KHz
Double-phase, 2*up to 50KHz
2*up to 10KHz |
None |
2*RS485
up to 115.2kbps |
Nonsupport |
90*97*70 |
| K205-16DT |
6 |
6*transistor |
4 |
3
2*up to 50KHz
1*up to 10KHz |
| K205EX-22DT |
8 |
8*transistor |
6 |
| K205EA-18DT |
8 |
None |
1 |
1 |
| CPU204 |
K204ET-16DT |
8 |
6*transistor |
1 |
1 |
4
Single and double phase, Maximum counting frequency: 200KHz |
3
Maximum output frequency: 200KHz |
1*Ethernet
2*RS485 up to 115.2kbps |
| CPU209 |
K209EA-50DX |
22 |
8*transistor+12*relay |
6 |
2 |
Single phase, 2*up to 200KHz
2*up to 20KHz
double phase, 2*up to 100KHz
2*up to 10KHz |
3
2*up to 200KHz
1*up to 10KHz |
1*RS232
2*RS485 up to 115.2kbps |
215*90*70.36 |
| K209M-56DT |
32 |
24*transistor |
None |
2
Single and double phase, Maximum counting frequency: 200KHz |
4
3*up to 200KHz
1*up to 10KHz |
2*CAN
1*RS232 2*RS485 up to 115.2kbps |
Up to 14 |
Thông tin đặt hàng
DC24V, DI 8*DC24V, DO 6*DC24V, AI 1*IV, AO 1*IV, USB2.0, programming port, Ethernet port*1, RS485*2, can't expand
