Cảm biến đo lực kéo 10 - 200 N Lorenz K-1368

Chia sẻ:
Mã sản phẩm: K-1368
Thương hiệu: Lorenz Messtechnik
Tình trạng:

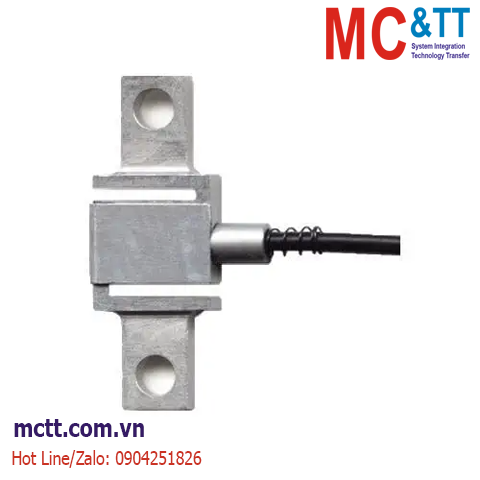

Miniature tension force transducer K-1368, made of aluminum produced & distributed by Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo lực kéo 10 - 200 N Lorenz K-1368

K-1368, Miniature
The Model K-1368, Miniature load cell features a high accuracy ‘S’ beam design, built for measuring bidirectional forces with a threaded load connection on each end. The K-1368 S Beam Load Cell offers a compact design for platforms, silos, or scales.


  • Easy Assembly
  • Tension
  • Accuracy: ±0.2%
  • Length: 50.0mm
  • Width: 18.0mm
  • Height: 5.0mm
  • Connection: 3m Integral Cable
  • Aluminum (≤ 20 N)
  • Stainless Steel (≥ 100 N)

K-1368 - Specifications

Type S-Type
Application Tension
Full Scale 2.2 lbs
  4.5 lbs
  11.2 lbs
  22 lbs
  45 lbs
Output 1 mV/V
Precision ±0.2 % FS
Excitation 2 V - 6 V DC
IP Rating IP60
Min Temperature 0 °C
Max Temperature 60 °C


PDF Datasheet: 080805a_K-1368_en.pdf
