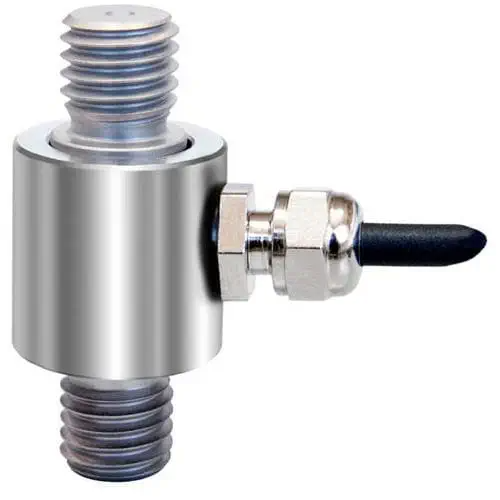

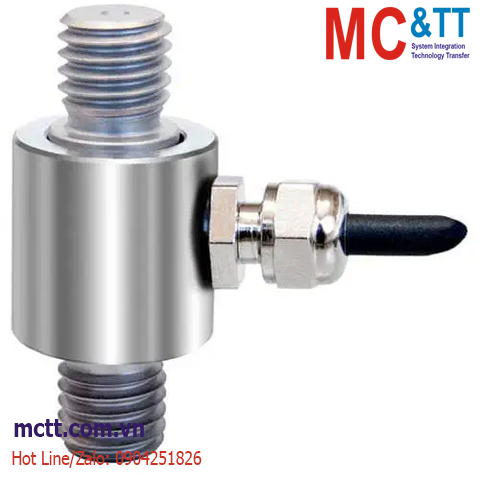

Cảm biến đo lực kéo 1 - 100 kN Lorenz K-100

Chia sẻ:
Mã sản phẩm: K-100
Thương hiệu: Lorenz Messtechnik
Tình trạng:

Miniature tension force transducer K-100 with rod ends, made of stainless steel, protected against low pressure water jets produced by Lorenz Messtechnik GmbH

Liên hệ
Mô tả

Cảm biến đo lực kéo 1 - 100 kN Lorenz K-100

K-100, Miniature
Its complex design with integrated support membranes reduces additional construction effort for external overload protection or guidance of force of applied parts in many applications. This requires little space, has little material and weight.


  • Tension
  • Accuracy: ±0.3%
  • Outer Diameter: 14.0mm - 35.0mm
  • Height: 35.0mm - 70.0mm
  • Connection: 3m Integral Cable
  • Stainless Steel (Measuring Body)
  • Aluminum (Material Housing)

K-100 - Specifications

Type Rod Type
Application Tension
Full Scale 220 lbs
  450 lbs
  1120 lbs
  2200 lbs
  4500 lbs
  11200 lbs
  22000 lbs
Output 1 mV/V
Precision ±0.3 % FS
Excitation 2 V - 12 V DC
IP Rating IP65
Min Temperature 0 °C
Max Temperature 60 °C


PDF Datasheet: 080803a_K-100_en.pdf
