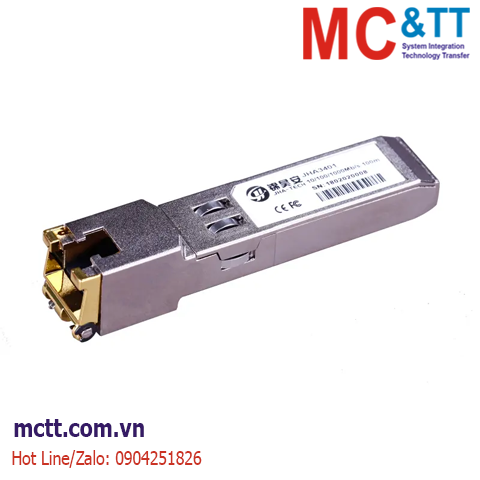

Module đồng SFP công nghiệp 1.25Gb/s, 10/100/1000BASE-T, RJ45 JHA Tech JHA3401
JHA3401 10/100/1000BASE-T copper SFP transceiver is high performance, cost effective module compliant with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 10/100/1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The JHA3401 supports 10/100/1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modula-tion (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The JHA3401 provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2-wire serial bus at address ACh.
Tính năng
- Up to 1.25Gb/s bi-directional data links
- Hot-pluggable SFP footprint
- Extended case temperature range (-40°C to +85°C )
- Fully metallic enclosure for low EMI
- Low power dissipation
- Compact RJ-45 connector assembly
- Detailed product information in EEPROM
- +3.3V single power supply
- Access to physical layer IC via 2-wire serial bus
- 10/100/1000 BASE-T operation in host systems with SGMII interface
- Compliant with SFP MSA
- Compliant with IEEE Std 802.3TM-2002
- Compliant with FCC 47 CFR Part 15, Class B
- RoHS Compliant Products
Thông số kỹ thuật
SFP to Host Connector Pin Out
|
Pin |
Signal name |
Description |
MSA Notes |
|
1 |
VEET |
Transmitter ground (common with receiver ground) |
|
|
2 |
TFAULT |
Transmitter Fault. Not supported |
Note 1 |
|
3 |
TDIS |
Transmitter Disable. PHY disabled on high or open |
Note 2 |
|
4 |
MOD_DEF(2) |
Module Definition 2. Data line for Serial ID. |
Note 3 |
|
5 |
MOD_DEF(1) |
Module Definition 1. Clock line for Serial ID. |
Note 3 |
|
6 |
MOD_DEF(0) |
Module Definition 0. Grounded within the module. |
Note 3 |
|
7 |
Rate Select |
No connection required |
|
|
8 |
LOS |
Loss of Signal – High Indicates Loss of Signal |
Note 4 |
|
9 |
VEER |
Receiver Ground (common with transmitter ground) |
|
|
10 |
VEER |
Receiver Ground (common with transmitter ground) |
|
|
11 |
VEER |
Receiver Ground(common with transmitter ground) |
|
|
12 |
RD- |
Receiver Inverted DATA out. AC Coupled |
Note 5 |
|
13 |
RD+ |
Receiver Non-inverted DATA out. AC Coupled |
Note 5 |
|
14 |
VEER |
Receiver Ground (common with transmitter ground) |
|
|
15 |
VCCR |
Receiver Power Supply |
Note 6 |
|
16 |
VCCT |
Transmitter Power Supply |
Note 6 |
|
17 |
VEET |
Transmitter Ground (Common with Receiver Ground) |
|
|
18 |
TD+ |
Transmitter Non-Inverted DATA in. AC Coupled. |
Note 7 |
|
19 |
TD- |
Transmitter Inverted DATA in. AC Coupled. |
Note 7 |
|
20 |
VEET |
Transmitter Ground(common with receiver ground) |
|
