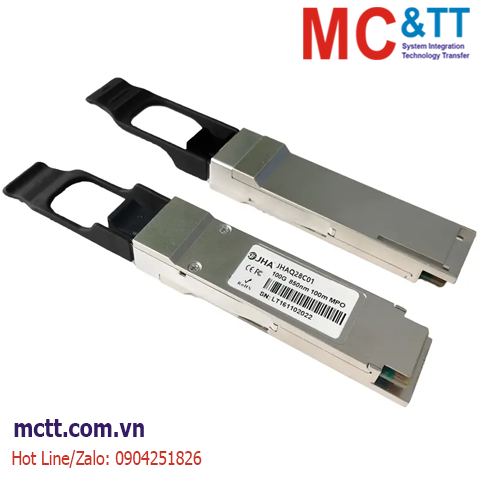

The JHA-Q28C01 is a transceiver module designed for 100m optical communication applications. The design is compliant to 100GbASE-SR4 of the IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard . The module converts 4 inputs channels (ch) of 25.78Gbps to 27.95Gbps electrical data to 4 lanes optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals, and converts them to 4 lanes output electrical data.

An optical fiber ribbon cable with an MPO/MTP connector at each end plugs into the QSFP28 module receptacle. The orientation of the ribbon cable is “keyed” and guide pins are present inside the module’s receptacle to ensure proper alignment. The cable usually has no twist (key up to key up) to ensure proper channel to channel alignment. Electrical connection is achieved though a z-pluggable 38-pin IPASS® connector.

The module operates from a single +3.3V power supply and LVCMOS/LVTTL global control signals such as Module Present, Reset, Interrupt and Low Power Mode are available with the modules. A 2-wire serial interface is available to send and receive more complex control signals and to obtain digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.

The JHA-Q28C01 is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.

Tính năng

• 4 independent full-duplex channels
• Up to 27.95Gbps per channel bandwidth
• Aggregate bandwidth of > 100Gbps
• MTP/MPO optical connector
• QSFP28 MSA compliant
• Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module  electrical standard ITU-T G.959.1-2012-02 standard
• Digital diagnostic capabilities
• Single +3.3V power supply operating
• Temperature range 0°C to 70°C
• RoHS Compliant Part

Thông số kỹ thuật

Absolute Maximum Ratings

• Recommended Operating Environment:

Electrical Characteristics (TOP = 0 to 70 °C, VCC = 3.13 to 3.47 Volts

Note:

20～80%

• Optical Parameters(TOP = 0 to 70 °C, VCC = 3.0 to 3.6 Volts)

Note

12dB Reflection

Download

Datasheet
