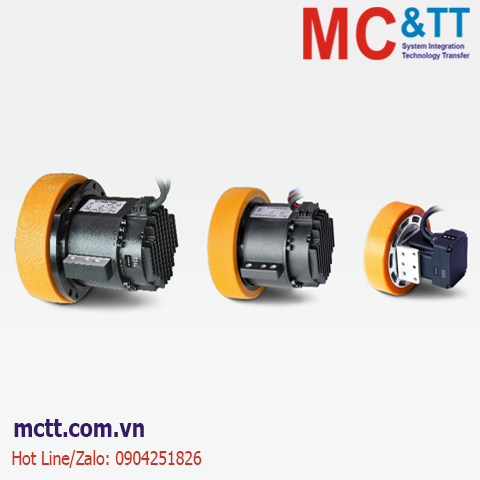

Bánh xe Servo DC tích hợp with brake Kinco iWMC05710-01230-A165-MBDT
Special servo wheel module of mobile robots with 50kg~2T Load varioustypes of mobile robots
Tính năng
- Highly integrated: The four main components of the driver, motor, reducer, and wheel are highly integrated, resulting in a compact structure that facilitates downsizing;
- High mounting accuracy: Supported mounting, simple and convenient mounting method, high mounting accuracy, and high control accuracy;
- High reliability: The integrated module, with only external power supply and communication cables, is resistant to nickel-contacts and improves the stability and reliability of the entire system;
- Compatible design & seamless switching: The communication and usage modes of the servo wheel products are no different from those of the standard Kinco products, allowing seamless switching;
- Good maintainability: A single supplier for the integrated product facilitates the maintenance of the product at a later stage and reduces supply chain and after-sale costs.
Thông số kỹ thuật
| iWMC Model Parameters |
Rated Linear Speed（m/s） |
Max Linear Speed（m/s） |
Rated Torque Tn(Nm) |
Peak Torque Tn(Nm) |
Tire Diameter（mm） |
Tire Width（mm） |
Tire Material |
Tire Hardness Rating |
Max radial force N |
Max axial force N |
| iWMC05606-00450-A150-M■DT-L |
3.9 |
5.2 |
3.6 |
10.9 |
150 |
40 |
Polyurethane |
73A |
1500 |
280 |
| iWMC05606-00450-A150-M■DT-R |
| iWMC05606-00850-A150-M■DT-L |
3.9 |
5.2 |
7.2 |
21.7 |
150 |
40 |
Polyurethane |
73A |
1500 |
280 |
| iWMC05606-00850-A150-M■DT-R |
| iWMC05710-01230-A130-M■DT |
2 |
2.3 |
12 |
36.1 |
130 |
35 |
Polyurethane |
85A± 2 |
2500 |
500 |
| iWMC05710-01230-A150-M■DT |
2.3 |
2.7 |
12 |
36.1 |
150 |
35 |
85A± 2 |
2500 |
500 |
| iWMC05710-01230-A165-M■DT |
2.59 |
3 |
12 |
36.1 |
165 |
35 |
Polyurethane |
85A± 2 |
2500 |
500 |
| iWMC10409-02222-A165-M■DT |
1.9 |
2.2 |
22 |
66 |
165 |
39.5 |
85A |
3000 |
1000 |
| iWMC10409-02222-A165-M■DR |
Polyurethane |
| iWMC10411-04023-A180-M■DT |
2.14 |
2.48 |
40 |
99 |
180 |
50 |
90A |
7000 |
1500 |
| iWMC10411-04023-A180-M■DR |
Polyurethane |
| iWMC10415-05417-A180-M■DT |
1.57 |
1.82 |
54 |
150 |
180 |
50 |
93A±2 |
7000 |
1500 |
| iWMC10415-05417-A180-M■DR |
Polyurethane |
| iWMC10420-07512-A180-M■DT |
1.18 |
1.37 |
75 |
200 |
180 |
50 |
93A±2 |
7000 |
1500 |
Note： ■ = A ： Without brake
B ： With brake |
