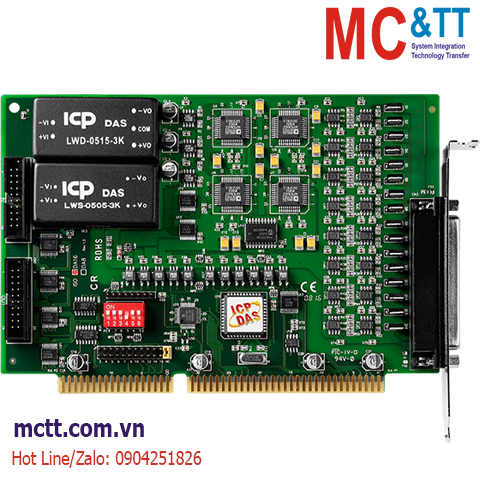

Card ISA 16 kênh AO 14 bit + 16 kênh DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS ISO-DA16/S CR

Chia sẻ:
Mã sản phẩm: ISO-DA16/S
Thương hiệu: ICP DAS
Tình trạng:

ISA Bus, 16-ch, 14-bit Isolated AO Board

Liên hệ
Mô tả

Card ISA 16 kênh AO 14 bit + 16 kênh DI/DO + 3 kênh Timer/Counter/Frequency ICP DAS ISO-DA16/S CR

Features

  • Built-in DC/DC converter with 3000 VDC isolation
  • ISA bus
  • 2500 VDC photo-isolation protection
  • 16-channel, 14-bit AO
  • Voltage/current outputs from each converter
  • Output Type ( Unipolar or Bipolar ) and output range ( 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V) can be software programmable
  • 4 ~ 20 mA current sink to ground from each converter
  • Double-buffered D/A latch
  • Command set programming
  • Software Calibration

Introduction

The ISO-DA16 is bus-type isolated 14-bit D/A card for PC/AT compatible computers. The optical isolation of the ISO-DA16 can operate with up to 2500 Vrms of common-mode voltage. The ISO-DA16 offers 16-channel double-buffered AO. The output range may be configured from these ranges : +/-10 V, +/-5 V, 0 ~ 10 V, 0 ~ 5 V voltages output or 4 ~ 20 mA or 0 ~ 20 mA current loops sink. The board*s innovative design improve several drawbacks of the conventional isolated D/A card . For example : 1. Jumperless,Trimless 2. The power-on value of AO can be pre-defined by the user and stored in the on board EEPROM 3. High channel count output can be designed implemented in half size. 4. The calibration is performed under software control, thus eliminating manual trimpot adjustments. The calibration data is stored in EEPROM. Easy recalibration ensures the accuracy of the board.

Applications

  • Programmable voltage source
  • Programmable current sink
  • Harsh environment operation
  • Process control

Click to view the Introduction of https://mctt.vn/isa-icp-das

Specifications

Hardware
Connector Female DB37 x 1
20-pin Box header x 2
Analog Output
Channels 16
Range Voltage: ±10 V
Current: 0 ~ 20 mA
Resolution 14-bit
Accuracy 0.1% of FSR ±1 LSB @ 25 °C, ± 10 V
Response Time 250 kHz (Typical)
Voltage Output Capability ±5 mA
Slew Rate 0.6 V/μs
Operation Mode Static Update
Digital Input
Channels 16
Type 5 V/TTL
ON Voltage Level 2.0 V Min.
OFF Voltage Level 0.8 V Max.
Response Speed 1.0 MHz (Typical)
Trigger Mode Static Update
Digital Output
Channels 16
Type 5 V/TTL
Operation Mode Static Update
Load Voltage Logic 0: 0.4 V Max.
Logic 1: 2.4 V Min.
Load Current Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V
Response Speed 1.0 MHz (Typical)
Timer/Counter/Frequency
Channels 3
Type 5 V/TTL
Resolution 16-bit
Reference Clock Internal: 4 MHz
PC Bus
Type ISA
Data Bus 8-bit
Power
Consumption 3000 mA @ +5 V
Mechanical
Dimensions (mm) 22 x 182 x 22 (W x L x D)
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -20 ~ +70°C
Humidity 5 ~ 85% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

ISO-DA16/S     CR  ISA Bus, 16-ch, 14-bit Isolated AO Board(RoHS)
Includes DN-37 Terminal Board and one CA-3710 D-Sub cable
