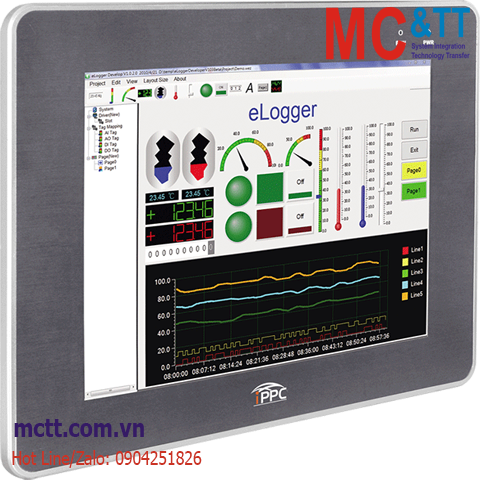

Máy tính công nghiệp màn cảm ứng 10.4 inch CPU E3845 + Win10 IoT ICP DAS iPPC-4801-IoT CR
Features
• Windows 10 IoT Enterprise Indise
• Intel® Atom™ E3845 1.91 GHz
• 10.4" TFT LCD with Touch Panel
• Rich software support
• Various Memory and Storage
‣ 4 GB DDR3 SDRAM
‣ 16 KB EEPROM and 128 KB MRAM for data retention
‣ 64 GB SSD
‣ 32 GB CF Card
• Various Communication Interfaces
‣ 1 x RJ-45, 10/100/1000 BASE-TX Ethernet Port
‣ 2 x Serial Ports (RS-232/RS-422/RS-485)
‣ 2 x USB 2.0 (host)
• 64-bit Hardware Serial Number for Software Protection
• Redundant Power Input
Introduction
The iPPC-4801-IoT series is Windows 10 IoT Enterprise based Panel PC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual iPPC. It is equipped with an Intel Atom E3845 CPU,TFT LCD and a variety of connectives including dual Gigabit Ethernet, USB port, RS-232 and RS-485 interface. The operating system is pre-installed in the built-in mSATA SSD, and the storage can be expanded from a Compact Flash slot. Remote I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules. Designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. Designed to operate over a wide -20°C ~ 60°C ambient temperature range, the fanless design off ers the ultimate in reliability with no moving parts.
Application
https://mctt.vn/iot-ippc-icp-das
Specifications
| Software |
| OS |
Windows 10 IoT Enterprise Indise |
| Framework Support |
.Net Framework 3.5, 4.0, 4.5, 4.8 |
| Multilanguage Support |
English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK |
Dll for VC, Dll for Visual Studio.Net |
| Main Unit |
| CPU |
E3845, 1.91 GHz, 64-bit quad core |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
4 GB DDR3 SDRAM |
| Storage |
64 GB SSD, 32 GB CF card |
| Non-Volatile Memory |
128 KB MRAM, 16 KB EEPROM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Size |
10.4" |
| Backlight Life |
50,000 hours |
| Brightness |
400 cd/m2 |
| Resolution |
800 x 600 |
| Touch Panel |
5-wire, resistive type; light transmission: 80 % |
| Contrast Ratio |
500：1 |
| LED Indicators |
| Status |
1 x System, 1 x Power |
| COM Ports |
| Ports |
2 x RS-232/RS-422/RS-485 |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
1 x 10 Position (0 ~ 9) |
| Ethernet |
| Ports |
1 x RJ-45, 10/100/1000 Base-TX |
| Power |
| Input Range |
+10 ~ 30 VDC (1500 VDC Isolated) |
| Redundant Power Inputs |
Yes |
| Consumption |
22.0 W |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
291 x 229 x 53 (W x L x H) |
| Panel Cut-Out (mm) |
274 x 211, ±1 (W x H) |
| Installation |
Panel Mounting, VESA Mounting (75 x 75, 100 x 100) |
| Ingress Protection Rating |
Front panel: NEMA 4/IP65 |
| Environment |
| Operating Temperature |
-20 ~ +60 °C |
| Storage Temperature |
-20 ~ +70 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iPPC-4801-IoT CR |
10.4" Panel PC with Atom E3845 CPU and Win10 IoT (RoHS) |
