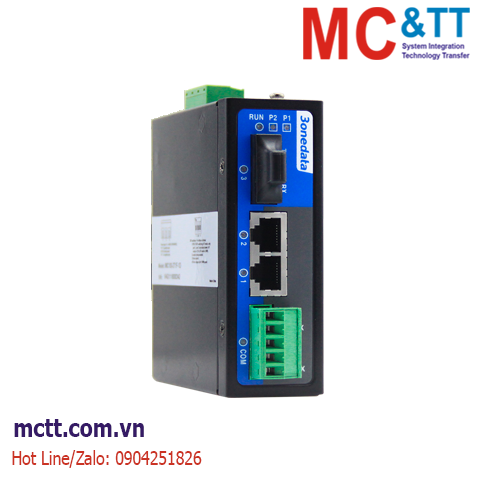

Bộ chuyển đổi quang điện công nghiệp quản lý 2 cổng Ethernet + 1 cổng quang + 1 cổng RS-232/422/485 3Onedata IMC100-2T1F-1DI(3IN1)

IMC100-2T1F-1DI is 4-port managed industrial media converter which provides 100M fiber port, 100M copper port and 3IN1 serial port. It adopts DIN-Rail mounting to meet the requirements of different scenes.

The network management system supports message suppression of broadcast, multicast and unknown unicast. Functions like One-Key VLAN, Serial Port Parameter Configuration, Operating Mode Configuration, IP Address Filtering, MAC Address Filtering, Alarm Setting, File Management and User Password Management are also supported. Network management system could provide you with great user experience via its friendly interface design and convenient operation.

The power supply input consists of two independent power supply circuits, which can ensure device’s normal operation when one fails. The hardware adopts fanless, low power consumption and wide temperature and voltage range design. It also has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.

Tính năng

  • Support 1 100M fiber port, 2 100M copper ports and 1 3IN1 serial port
  • Support dual power supply, input voltage: 9~70VDC
  • Support -40~85℃ wide temperature range operation

Thông số kỹ thuật

Standard & Protocol IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100BaseFX

IEEE 802.3x for flow control

Interface Copper port:: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning

Fiber port: 100Base-FX, optional SC/ST/FC

Serial port: RS-232/422/485 (3IN1)

Serial Port Serial port quantity: 1 RS-232/422/485

RS-485 signal: D+, D-, GND

RS-422 signal: T+, T-, R+, R-, GND

RS-232 signal: RX, TX, GND

Check bit: None, Even, Odd

Data bit: 7bit, 8bit

Stop bit: 1bit, 2bit

Baud rate: 300bps-115200bps

Direction control: RS-485 adopts automatic data flow control technique

Load capability: RS-485 supports 32-point polling environment

LED Indicator Running indicator, port indicator, power supply indicator, serial port receiving and sending indicator
Switch Property Transmission mode: store-and-forward

MAC address: 16K

Packet buffer size: 4Mbit

Backplane bandwidth: 5.6G

Power Requirement 9~70VDC, dual power supply redundancy

4-pin pitch 7.62mm terminal block

Power Consumption No-load: 3.00W@24VDC

Full-load: 3.24W@24VDC

Operating Environment Operating temperature: -40~85℃

Storage temperature: -40~85℃

Relative humidity: 5%~95% (no condensation)

Physical Characteristic Housing: IP40 protection, metal

Installation: DIN-Rail mounting

Dimension (W x H x D): 36mm×110mm×97mm

Weight: 410g

Industrial Standard IEC61000-4-2 (ESD, Electrostatic Discharge), Level 3

Air discharge: ±8kV

Contact discharge: ±6kV

IEC61000-4-4 (EFT, Electrical fast transient), Level 3

Power supply: ±2kV

Ethernet port: ±1kV

IEC61000-4-5 (Surge), Level 3

Power supply: differential mode±1kV, common mode±2kV

Signal: differential mode±1kV, common mode±2kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Certification CE, FCC, RoHS

Thông tin đặt hàng

Available Models 100M Copper Port 100M Fiber Port 3IN1 Serial Port Power Supply
IMC100-2T1F-1DI(3IN1) 2 1 1 9~70VDC (dual power supply)
