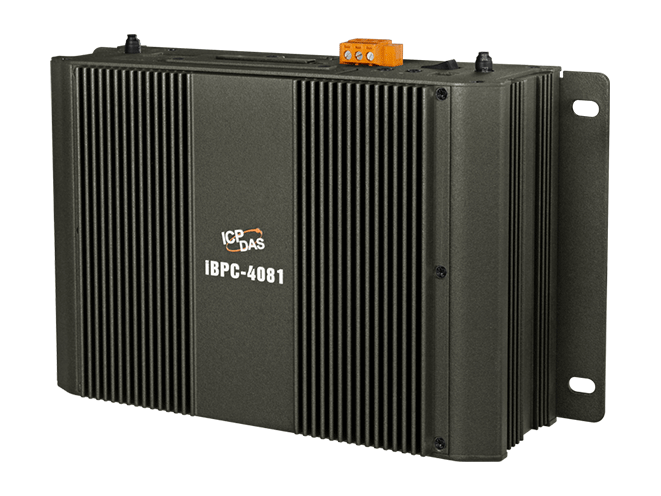

Máy tính nhúng công nghiệp không quạt CPU E3845 dạng Box ICP DAS iBPC-4081 CR
Features
• Powerful Hardware Design
‣ Intel E3845, 1.91 GHz, 64-bit, Quad core
‣ 1 x VGA display port
‣ 1 x HDMI display port
‣ Microphone-In and Earphone-Out
‣ Built-In dual watchdog timers/ Real-time clock/64-bit Hardware Serial Number
• Various Memory & Storage Options
‣ 4 GB DDR3 on-board
‣ 1 x 2.5”SATA drive bay
‣ 1 x CF socket
‣ 16 KB EEPROM for data retention
‣ 128 KB MRAM for data retention
• Multiple Communication Interfaces
‣ 2 x 10/100/1000BASE-T Ethernet Ports
‣ 4 x Serial Ports (1 x RS-232, 1 x RS-232/485, 2 x RS-232/422/485)
‣ 4 x USB 2.0 (host)
• Highly Reliable Under Harsh Environment
‣ Operating Temperature: -25 ~ +70°C
• Operating Systems
‣ Win7/Win8/Win10/WES7/Linux
Introduction
iBPC series is a fanless embedded box PC, wide operating temperature and wide range voltage capability, allow it run in the harsh environments. iBPC series comes with the same interfaces: one RS-232 port, one RS-232/485 port, and two RS-232/422/485 ports, VGA, HMDI, Audio, dual Gigabit Ethernet LAN ports and four high-speed USB 2.0. And there are various CPU options: iBPC-4081 is with one Intel® ATOM Quad Core 1.91Ghz Processor E3845 (with 4GB on-board memory). Two SMA type connector opening for antenna, optional I/O expansion board (XV-board), provides high protection I/O, +10 ~ 30 VDC power input connector, and one power switch. One 2.5" SATA HDD drive bay is also set up in the embedded computer to possess suffi cient storage.
Application
https://mctt.vn/ibpc-icp-das
Specifications
| Software |
| OS Support |
Win7/Win8/Win10/WES7/Linux |
| SDK |
Dll for VC, Dll for Visual Studio.Net |
| Main Unit |
| CPU |
Intel E3845, 1.91 GHz, 64-bit, Quad core |
| 64-bit Hardware Serial Number |
Yes |
| System Memory |
4 GB DDR3 |
| Storage |
One 2.5" SATA drive bay, One CF socket |
| Non-Volatile Memory |
128 KB MRAM, 16 KB EEPROM |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Dual Watchdog Timer |
| Display |
| Signal |
VGA, HDMI |
| Resolution |
1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3) |
| LED Indicators |
| Status |
1 x Power, 1 x HDD, 2 x Programmable |
| I/O Expansion |
| I/O Type |
XV-board, PCI-E Mini-Slot |
| COM Ports |
| Ports |
1 x RS-232 (3000VDC Isolated), 1 x RS-232/RS-485 (3000VDC Isolated), 2 x RD-232/RS-422/RS485 (3000VDC Isolated) |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
1 x 10 Position (0 ~ 9) |
| Power Switch |
Yes |
| SMA Connector |
2 |
| Audio |
| Jack |
Microphone-In and Earphone-Out |
| Ethernet |
| Ports |
2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
18.0 W |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
254 x 164 x 74 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Ingress Protection Rating |
IP30 (Aluminum) |
| Environment |
| Operating Temperature |
-25 ~ +70 °C |
| Storage Temperature |
-40 ~ +75 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iBPC-4081 CR |
Industrial fanless embedded Box PC with Intel Atom E3845 CPU and 1 I/O Bus (RoHS) |
