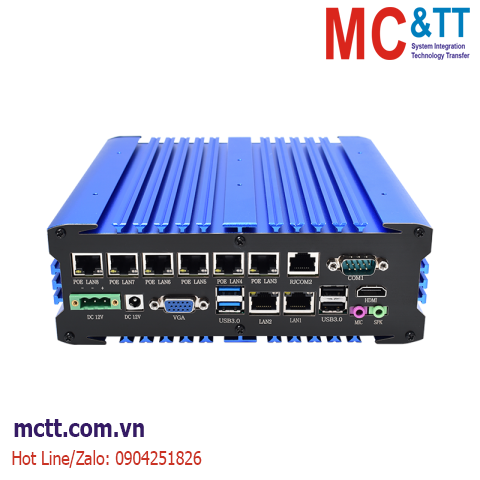

Máy tính nhúng công nghiệp không quạt (8 LAN + 6 COM) TP-IPC IBOX-105V3-8L2C6P

Mã sản phẩm: IBOX-105V3-8L2C6P

Thương hiệu: TP-IPC

Tình trạng: Còn hàng

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Máy tính nhúng công nghiệp không quạt (8 LAN + 6 COM) TP-IPC IBOX-105V3-8L2C6P

The IBOX-105V3-8L2C6P system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.

Tính năng

Support up to new Intel® Iris® Xe graphics, the platform offers up to 2.95 times faster graphics performance
8-11th Generation Intel Core processors optional with rich expansion slot offers strong scalability
When it works with Tiger Lake processor, the graphics, media, and display engine with up to two VDBOXes that can decode over 40 incoming video streams at 1080p and 30 frames per second.
Eight Gigabit LAN comes with 6 support PoE protocal IEEE802.3af
Full aluminum alloy anti-interference structure with modular parts design offers stronger system stability
Fully enclosed with fanless cooling system and cable-free design for better vibration resistance
Multiple mounting options available, DIN-Rail, Wall-Mount, Embedded

Tổng quan sản phẩm

The IBOX-105V3-8L2C6P Embedded Mini PC is equipped with Intel® Core 8 to 11 Generation processors, giving you more computing power and cost advantages.Multi-SO-DIMM DDR4 provides 32 to 64GB of memory and supports multiple monitors via HDMI and VGA. It is dust, interference and heat resistant. Rich I/O interfaces including 8LAN( include 6POE), 2COM, 4 USB3.0, 3 USB3.0; and 1 built-in USB2.0 meet the needs of most markets. Desktop installation is easy, with a Wi-Fi module and a SIM card slot for expansion.

Thông số kỹ thuật

Model	IBOX-105V3-8L2C6P (IBOX-105V3-8L2C6P-RJ45, With 6* RJ45 PoE LAN; IBOX-105V3-8L2C6P-M12, With 6* M12 PoE LAN)
Supported OS	Win7 x64, Win 10 (Version 1809 and above), Win 11, Linux (Kernel 5.16 and above); WES 7; Win 10 IoT
CPU	Series/ Model	8th Gen. Intel® Core™ Processor	11th Gen. Intel® Core™ Processor
	TDP	Up to 15W	Up to 28W
RAM	Type & Qty	2* SO-DIMM Socket	2* SO-DIMM Socket
	Frequency	DDR4-2133/2400 MHz	DDR4-3200 MHz
	Capacity	Up to 32GB	Up to 64GB
Storage Device	SATA	1* 2.5″ SATA3.0 Bay on board (6Gb/s)
	MSATA	1* mSATA3.0 slot on board (6Gb/s)
I/O Interface	COM	IBOX-105V3-8L2C6P-RJ45: 1* RS232/485 with RJ45 connector, 1* RS232/485 with DB9 connector, switchable by jumper; IBOX-105V3-8L2C6P-M12: 1* RS232/485 with DB9 connector, switchable by jumper, 1* RS232 header
	Ethernet with PoE	6* Intel® i226 GbE PoE LAN (RJ45/M12 Connector);
	Ethernet without PoE	2* 1.0 GbE LAN, Intel i211, RJ45	2* 2.5 GbE LAN, Intel i225, RJ45
	USB	4* USB3.0; 3* USB2.0; 1* Internal USB 2.0	2* USB3.0; 5* USB2.0; 1* Internal USB2.0
	Video	1* HDMI, support 4096×2304@24Hz; 1* VGA, support 1920×1200@60Hz;	1* HDMI, Support 4096×2304@60Hz; 1* VGA, Support 1920×1200@60Hz;
	Audio	1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662	1* MIC, 1* SPK; With 7.1 channel HD Audio Codec Realtek ALC897
	SIM	1* External SIM card slot connected to Mini-PCIe
	Power Supply	9-36V DC; 1* Terminal Block (3-Pin, 5.08mm), 1* DC Jack (5.5* 2.5mm)
	Others	1* 8-bit GPIO (4-Inputs/4-Outputs, 0-5V Input Range) and 1* Remote Switch on Terminal Block (12-Pin, 3.81mm); 1* Auto-On Switch; 1* PS/2 for Keyboard & Mouse;
Extended Capabilities	Additional Internal Interface	1* Full Size Mini-PCIe with SIM card slot; (PCIe+USB2.0, PCIe signal is shared with 1*LAN)
Environment	Operating Temperature	-10 ~ 55 °C w/ 0.7m/s Airflow
	Storage Temperature	-40 ~ 85 °C (-40~185 °F)
	Relative Humidity	40 °C @ 95%, Non-Condensing
Physical Characteristics	Dimensions	192* 67* 189.5 mm (W* H* D)
	Net Weight	2.5 KG (The actual weight is subject to the final configuration)
Regulation	EMC	CE/FCC Class B, CCC
	Safety	CE-LVD, RoHS, CCC

Kích thước sản phẩm

Bộ xử lý CPU

CPU	Code Name	Total Cores	Total Threads	Max Turbo Frequency	Base Frequency	Cache	TDP	Memory Types	Integrated Graphics
Intel® Core™ I3-8145U	Whiskey Lake	2	4	3.90 GHz	2.10 GHz	4 MB Intel® Smart Cache	15W	DDR4	Intel® UHD Graphics 620
Intel® Core™ I5-8265U	Whiskey Lake	4	8	3.90 GHz	1.60 GHz	6 MB Intel® Smart Cache	15W	DDR4	Intel® UHD Graphics 620
Intel® Core™ I7-8565U	Whiskey Lake	4	8	4.60 GHz	1.80 GHz	8 MB Intel® Smart Cache	15W	DDR4	Intel® UHD Graphics 620
Intel® Core™ I5-1135G7	Tiger Lake	4	8	4.20 GHz	2.40 GHz	8 MB Intel® Smart Cache	12-28W	DDR4	Intel® Iris® Xe Graphics; 80Eus
Intel® Core™ I7-1195G7	Tiger Lake	4	8	5.00 GHz	2.90 GHz	12 MB Intel® Smart Cache	12-28W	DDR4	Intel® Iris® Xe Graphics eligible; 96Eus

Phụ kiện mua thêm

Optional Items	Max Qty	Description
AI Acceleration Card	1	13 TOPS, Connected by Mini-PCIe interface
Isolated 8-bit GPIO, 9-24V	1	Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 8-bit GPIO with current loading, 9-26V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 15-bit GPIO, 0-5V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
Isolated 15-bit GPIO with 7-in & 8-out, 12-24V	1	Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface
4G Module	1	Connected by Mini-PCIe interface
WiFi Module without AP mode	1	Connected by Mini-PCIe interface or Internal USB
WiFi Module with AP mode	1	Connected by Mini-PCIe interface
Dual channel CAN-Bus Module	1	Connected by Mini-PCIe interface
