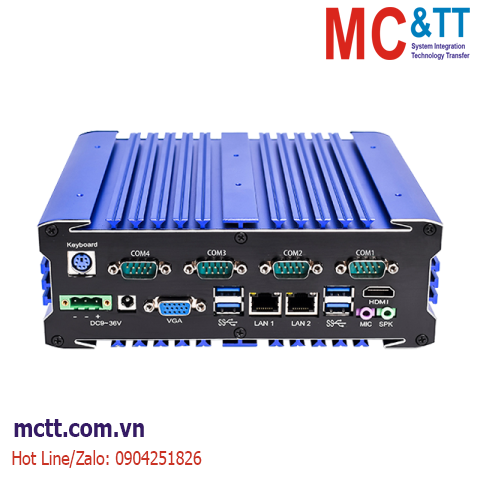

Máy tính nhúng công nghiệp không quạt (2 LAN + 4 COM) TP-IPC IBOX-105V2-2L4C

Model

IBOX-105V2-2L4C

Supported OS

Win 7, Win 8, Win 10, Win11, Linux (Ubuntu, Dibian, Kali, CentOS, etc.); WES 7; Win 10 IoT

CPU

Series/ Model

4th~5th Gen. Intel® Core™ Processor Intel® Celeron® J1900

6th~8th Gen. Intel® Core™ Processor Intel® Celeron® 3865U/ 5205U

11th Gen. Intel® Core™ Processor Intel® Celeron® 6305E

TDP

Up to 15W

Up to 15W

Up to 28W

RAM

Type & Qty

1* SO-DIMM Socket

2* SO-DIMM Socket

2* SO-DIMM Socket

Frequency

DDR3L-1333/1600 MHz

DDR4-2133/2400 MHz

DDR4-3200 MHz

Capacity

Up to 8GB

Up to 32GB

Up to 64GB

Storage Device

SATA

1* 2.5″ SATA3.0 Bay on board (6Gb/s); (Intel® Celeron® J1900 supports SATA2.0, 3Gb/s)

MSATA

1* mSATA3.0 slot on board (6Gb/s); (Intel® Celeron® J1900 supports mSATA2.0, 3Gb/s)

I/O Interface

COM

4* Isolated DB9 COM Ports with ESD/EFT/Surge protection (COM1-4, support RS232/485, switchable by jumper); 2* Internal COM headers on board (COM5-6, RS232)

Ethernet

2* 1.0 GbE LAN, Intel i211/i210, RJ45 only

(Only Intel® Core™ i3-5020U is working with intel i210 GbE LAN)

2* 2.5 GbE LAN, Intel i225, RJ45

USB

2* USB3.0; 4* USB2.0;1* Internal USB2.0;

(Intel® Celeron® J1900: 1* USB3.0+5* USB2.0+1* Internal USB2.0)

4* USB3.0; 2* USB2.0;

1* Internal USB 2.0

2* USB3.0; 4* USB2.0;

1* Internal USB2.0;

Video

1* HDMI, Support 4096×2304@24Hz;

1* VGA, Support 1920×1200@60Hz;

1* HDMI, Support 4096×2304@24Hz;

1* VGA, Support 1920×1200@60Hz;

1* HDMI, Support 4096×2304@60Hz;

1* VGA, Support 1920×1200@60Hz;

Audio

1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662

1* MIC, 1* SPK; With 5.1 channels HD Audio Codec Realtek ALC662

1* MIC, 1* SPK; With 7.1 channels HD Audio Codec Realtek ALC897

SIM

1* External SIM card slot connected to

M.2 B-key slot

1* External SIM card slot connected to M.2 B-key slot; Support optional 2nd SIM card slot connected to Mini-PCIe

Power Supply

9-36V DC; 1* Terminal Block (3-Pin, 5.08mm), 1* DC Jack (5.5* 2.5mm)

Others

1* 8-bit GPIO, Terminal Block (12-Pin, 3.81mm), 4-Inputs/4-Outputs, 0-5V Input Range; 1* Terminal Block (4-Pin, 3.81mm Pitch) with Remote Switch and Power Indicator;

1* Auto-On Switch; 1* PS/2

Extended Capabilities

Additional Internal Interface

1* M.2 3052 B-key slot connected to SIM card slot (PCIe+USB2.0, the USB2.0 signal is shared with one of USB2.0 on front panel)

–

1* Full Size Mini-PCIe (PCIe+USB2.0);

Environment

Operating Temperature

-10 ~ 55 °C w/ 0.7m/s Airflow

Storage Temperature

-40 ~ 85 °C (-40~185 °F)

Relative Humidity

40 °C @ 95%, Non-Condensing

Physical Characteristics

Dimensions

192* 67* 165.43 mm (W* H* D)

Net Weight

2.5 KG

Regulation

EMC

CE/FCC Class B, CCC

Safety

CE-LVD, RoHS, CCC

CPU

Code Name

Total Cores

Total Threads

Max Turbo Frequency

Base Frequency

Cache

TDP

Memory Types

Integrated Graphics

Intel® Celeron® J1900

Bay Trail

4

4

–

2.00 GHz

2 MB L2 Cache

10W

DDR3

Intel® HD Graphics

Intel® Core™ I5-4300U

Haswell

2

4

2.90 GHz

1.90 GHz

3 MB Intel® Smart Cache

15W

DDR3

Intel® HD Graphics 4400

Intel® Core™ I7-4600U

Haswell

2

4

3.30 GHz

2.10 GHz

4 MB Intel® Smart Cache

15W

DDR3

Intel® HD Graphics 4400

Intel® Core™ I3-5020U

Broadwell

2

4

–

2.20 GHz

3 MB

15W

DDR3

Intel® HD Graphics 5500

Intel® Celeron® 3865U

Kaby Lake

2

2

–

1.80 GHz

2 MB Intel® Smart Cache

15W

DDR4

Intel® HD Graphics 610

Intel® Celeron® 5205U

Comet Lake

2

2

–

1.90 GHz

2 MB

15W

DDR4

Intel UHD Graphics

Intel® Core™ I5-6360U

Skylake

2

4

3.10 GHz

2.00 GHz

4 MB Intel® Smart Cache

15W

DDR4

Intel® Iris® Graphics 540

Intel® Core™ I7-6650U

Skylake

2

4

3.40 GHz

2.20 GHz

4 MB Intel® Smart Cache

15W

DDR4

Intel® Iris® Graphics 540

Intel® Core™ I5-7200U

Kaby Lake

2

4

3.10 GHz

2.50 GHz

3 MB Intel® Smart Cache

15W

DDR4

Intel® HD Graphics 620

Intel® Core™ I5-7360U

Kaby Lake

2

4

3.60 GHz

2.30 GHz

4 MB

15W

DDR4

Intel® Iris Plus Graphics 640

Intel® Core™ I7-7600U

Kaby Lake

2

4

3.90 GHz

2.80 GHz

4 MB Intel® Smart Cache

15W

DDR4

Intel® HD Graphics 620

Intel® Core™ I3-8145U

Whiskey Lake

2

4

3.90 GHz

2.10 GHz

4 MB Intel® Smart Cache

15W

DDR4

Intel® UHD Graphics 620

Intel® Core™ I5-8265U

Whiskey Lake

4

8

3.90 GHz

1.60 GHz

6 MB Intel® Smart Cache

15W

DDR4

Intel® UHD Graphics 620

Intel® Core™ I7-8565U

Whiskey Lake

4

8

4.60 GHz

1.80 GHz

8 MB Intel® Smart Cache

15W

DDR4

Intel® UHD Graphics 620

Intel® Celeron® 6305E

Tiger Lake

2

2

–

1.80 GHz

4 MB Intel® Smart Cache

15W

DDR4

Intel® UHD Graphics 620

Intel® Core™ I5-1135G7

Tiger Lake

4

8

4.20 GHz

2.40 GHz

8 MB Intel® Smart Cache

12-28W

DDR4

Intel® Iris® Xe Graphics; 80Eus

Intel® Core™ I7-1195G7

Tiger Lake

4

8

5.00 GHz

2.90 GHz

12 MB Intel® Smart Cache

12-28W

DDR4

Intel® Iris® Xe Graphics eligible;96Eus

Optional Items

Max Qty

Description

Isolated RS-232

2

DB9 or Phoenix Terminal connector, connected by header

Non-Isolated RS-232

2

DB9 or Phoenix Terminal connector, connected by header

RS-422 With Surge Protection

2

DB9 or Phoenix Terminal connector, connected by header, with additional RS232 TO RS422 Module

RS-485 With Surge Protection

2

DB9 or Phoenix Terminal connector, connected by header, with additional RS232 TO RS485 Module

Isolated 8-bit GPIO, 9-24V

1

Phoenix Terminal connector, connected by non-standard M.2 interface

Isolated 8-bit GPIO with current loading, 9-26V

1

Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface

Isolated 15-bit GPIO, 0-5V

1

Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface

Isolated 15-bit GPIO with 7-in & 8-out, 12-24V

1

Digital signal, Phoenix Terminal connector, connected by non-standard M.2 interface

4G Module

1

Connected by M.2 or Mini-PCIe interface

5G Module

1

Connected by M.2 interface

WiFi Module without AP mode

1

Connected by Mini-PCIe interface

Dual Channel CANBus Module

1

Connected by Mini-PCIe interface

Ignition Switch Module

1

Phoenix Terminal connector, connected by internal power switch and 4-pin ATX power connector
