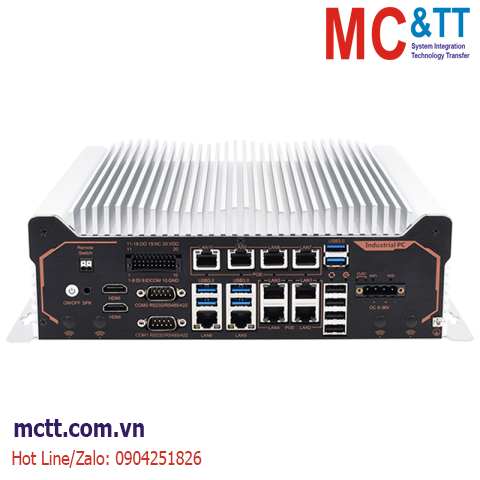

Máy tính nhúng công nghiệp không quạt (10 LAN + 4 COM) TP-IPC IBOX-007

Mã sản phẩm: IBOX-007

Thương hiệu: TP-IPC

Tình trạng: Còn hàng

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

GIẢI PHÁP

Mô tả

Mô tả

Máy tính nhúng công nghiệp không quạt (10 LAN + 4 COM) TP-IPC IBOX-007

The IBOX-007 fanless system is an ideal, application-ready, system platform solution with rich expandsion slots. All electronic components are protected in a compact, sealed chassis that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited.

Tính năng

Integrated up to eight Performance-cores, that enhance IoT workload consolidation, and up to eight Efficient-cores, that enhance background task management and multitasking.
Intel® Active Management Technology (AMT) provides client the remote out-of-band management for efficient proactive and reactive system maintenance over Ethernet or Wi-Fi connections and is a superset of Intel® Standard Manageability features.
Support up to 4* easily Swappable 2.5 inch HDD Design with RAID 0/1/5/10
Up to 32 graphics execution units (EUs) based on Intel® UHD Graphics 770 driven by Intel® Xe Architecture, allows for eye-catching visuals.
The graphics, media, and display engine with up to two VDBOXes that can decode over 40 incoming video streams at 1080p and 30 frames per second.
Full sealed modular parts design and cable-free design with aluminum alloy cooling enclosure, dustproof, anti-vibration and anti-interference;

Tổng quan sản phẩm

Featuring workstation-grade platform: powered by 12th Generation Intel® Core™ i9/i7/i5/i3 processor (Alder Lake/Raptor Lake) and running with Q670 chipset, TP-IPC IBOX-007 delivers high-performance computing capability. IBOX-007 supports 2 DDR4 memory up to 64GB and features max. 2 independent displays with 8K resolution. The brand new IBOX-007 offers a variety of connectivity and supports 9V to 36V DC-in to meet industrial requirements.

Thông số kỹ thuật

Model	IBOX-007
Supported OS	Win 10, Win11, Linux (Ubantu, Dibian, Kali, CentOS, etc.); Win 10 IoT
Chipset	Model	Intel® Q670 Chipset, Intel® Alder Lake-S, TDP 6W
CPU	Socket	Intel® Desktop Processors Socket LGA1700
	Series & TDP	12th Gen. Intel® Core™ i3 processor, Max. 65W TDPs	12th Gen. Intel® Core™ i9/ i7/ i5 processor, Max. 35W TDPs
	Graphic	Intel® UHD Graphics 730, 24 Execution Units	Intel® HD Graphics 770, 32 Execution Units
	vPRO Tech	Non-Supported	Supported
RAM	SO-DIMM	2* Dual-CH DDR4 3200 MHz SO-DIMM Socket, Capacity up to 64GB
Storage Device	M.2	1* M.2 2242/2280 PCIe x4 NVMe SSD (M-key, 2280/2242, From CPU) 1* M.2 3052/2280 PCIe x4/SATA/USB3.0/USB2.0 (M-key, Default PCIe x4, Support PCIe x4 NVMe SSD, 3052/2280, From PCH)
	SATA	4 * SATA3.0 7P Port, support max 4* swappable SSD design, support RAID 0/1/5/10
I/O Interface	COM	2* COM DB9/M (COM1/2, RS232/RS485/RS422, sel by BIOS); 2* RS232 Header (COM3/4, expanded by I/O Daughter Card)
	Ethernet	1* Intel® I219 GBE Ethernet Controller, LAN5, RJ45 1* Intel® I210 GBE Ethernet Controller, LAN6, RJ45 8* Intel® I210 GBE Ethernet Controller, RJ45, LAN1-4, LAN7-10, support PoE (LAN7-LAN10 are expanded by I/O Daughter Card)
	USB	4* USB3.0; 4* USB2.0; 1* Internal USB2.0; 2* USB3.0 (These two USB3.0 are expanded by I/O Daughter Card)
	Video	2 * HDMI (TYPE-A), Support 3840*2160@60Hz;
	Audio	1 * Line-Out + MIC 2in1 Jack; 1 * Front Audio Header (Line-out + MIC)
	SIM	1* Internal SIM card slot connected to Mini-PCIe
	Power Supply	9-36V DC; 1* Terminal Block (4-Pin, 5.08mm)
	Other	1* 8-bit GPIO header (4-Inputs/4-Outputs, 0-5V Input Range, on motherboard); 1* 16-bit GPIO on Terminal Block (8-Inputs/8-Outputs, 5-48V Input Range, 102Pin, 2.54mm, Expanded by I/O Daughter Card) 1 Remote Switch on Terminal Block (2*1Pin, 3.5mm, Expanded by I/O Daughter Card)
Extended Capabilities	Additional Internal Interface	1* Mini-PCIe with SIM Card Slot (PCIe+USB2.0, support WiFi or 4G)
Environment	Operating Temperature	-20 ~ 55 °C w/ 0.7m/s Airflow
	Relative Humidity	40 °C @ 95%, Non-Condensing
Physical Characteristics	Dimensions	290.35* 79.6* 234 mm (W* H* D)
	Net Weight	7 KG
Regulation	EMC	CE/FCC Class B, CCC
	Safety	CE-LVD, RoHS, CCC

Kích thước sản phẩm

Bộ xử lý CPU

CPU	Code Name	Total Cores	Total Threads	Max Turbo Frequency	Base Frequency	Cache	TDP	MemoryTypes	Integrated Graphics
Intel® Core™ I3-12100T	Alder Lake	4	8	4.10 GHz	2.20 GHz	12 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 730, 24EUs
Intel® Core™ I5-12500T	Alder Lake	6	12	4.40 GHz	2.00 GHz	18 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I7-12700T	Alder Lake	12	20	4.70 GHz	1.40 GHz	25 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I9-12900T	Alder Lake	16	24	4.90 GHz	1.40 GHz	30 MB Intel® Smart Cache	35 W	DDR4	Intel® HD Graphics 770, 32EUs
Intel® Core™ I3-12100	Alder Lake	4	8	4.30 GHz	3.30 GHz	12 MB Intel® Smart Cache	65 W	DDR4	Intel® HD Graphics 730, 24EUs

Phụ kiện mua thêm

Optional items	Max Qty	Description
I/O Daughter Card	1	Connected by IO expand slot, offering 4* PoE LAN+1* 16bit GPIO( 5-48V)+1* Remote Switch+ 2* USB3.0
4G/5G Module	1	Connected by Mini-PCIe or M.2 interface
WiFi Module without AP mode	1	Connected by Mini-PCIe interface
WiFi Module with AP mode	1	Connected by Mini-PCIe interface
Dual channel CAN-Bus Module	2	Connected by Mini-PCIe or M.2 interface
Dual GbE PoE LAN Module	3	Connected by Mini-PCIe or M.2 interface
AI Acceleration Card	4	26 TOPS, Connected by M.2 interface; 13 TOPS, Connected by Mini-PCIe interface
Ignition Switch Module	1	Phoenix Terminal connector, connected by internal power switch and 4-pin ATX power connector
