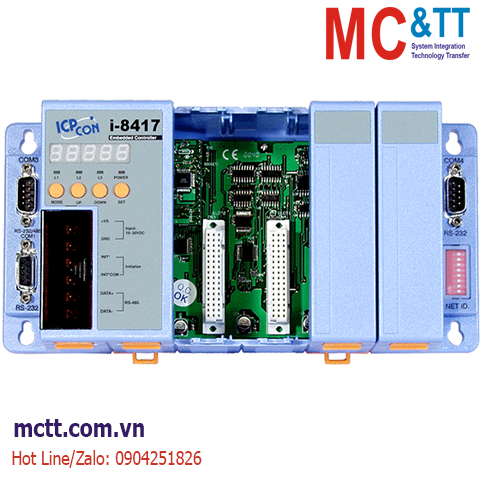

Bộ lập trình nhúng ISaGRAF PAC CPU 80188-40 + MiniOS7 + 4 khe cắm module I/O ICP DAS I-8417 CR
I-8417 đã dừng, thay thế và nâng cấp thành https://mctt.vn/ip-8xx7
Features
• 80188, 40 MHz CPU
• MiniOS7 Inside
• Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3)
• SRAM: 512 KB
• Flash: 512 KB
• 4 Slots for I-87K High/Low Profile I/O Modules
• 4 Serial Ports (RS-232/485)
Introduction
ISaGRAF I-8000 Series (I-8437-80/8837-80, I-8417/8817) is a PAC built-in ISaGRAF SoftLogic. ISaGRAF is a Windows programming tools and provides powerful debug tools such as Online Monitor&Control and Offline Simulation. There are more than 300 function blocks built-in the PAC for various Industrial Applications including PID, motion, remote IO, serial communication, SMS, retain variable, scaling, etc.
For hardware specification, I-8xx7 has 4 serial ports, supports Modbus RTU slave protocol and it can easily connect with PC/HMI/OPC Server and Touch panel. The I-8xx7 also supports up to 2 ports of Modbus RTU / ASCII master protocol to integrate with other Modbus devices. The I-8x37-80 has one 10M Ethernet port.
The I-8xx7 supports various High/Low profile I/O modules. Users can choose from Local I/O modules: I-8K/I-87K I/O modules and RS-485 Remote I/O modules: I-7000 or expansion units (I-87Kn or RU-87Pn) plugged with I-87K serial I/O modules. Compared to I-8437/8837 (It is phased out), I-8x37-80 is faster at all!
Notice:
ISaGRAF can not run on 64-bit Windows 7/8 PCs. Win-GRAF would be proper choice.
Application
Specifications
| Software |
| OS |
MiniOS7 |
| Protocol |
• NET ID
• Modbus RTU/ASCII Master
• Modbus RTU Slave
• DCON Protocol
• User-defined Protocol
• I/O Type: DCON, Modbus RTU remote I/O
• Fbus
• SMS |
| Development |
Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3) |
| CPU Module |
| CPU |
80188 or compatible, 8-bit and 40 MHz |
| 64-bit Hardware Serial Number |
Yes |
| EEPROM |
2 KB |
| Flash |
512 KB |
| NVRAM |
31 Bytes |
| SRAM |
512 KB |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Yes |
| Display |
| Type |
5 x Digit 7 Segment LED Display |
| LED Indicators |
| Status |
4 x Programmable |
| I/O Expansion |
| I/O Type |
I-8K, I-87K series |
| Slots |
4 |
| COM Ports |
| Ports |
2 x RS-232, 1 x RS-485, 1 x RS-232/RS-485 |
| HMI |
| DIP Switch |
8-bit for address |
| Push Button |
4 |
| Power |
| Input Range |
+10 ~ 30 VDC |
| Consumption |
3.9 W |
| Mechanical |
| Dimensions (mm) |
230 x 110 x 77 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 ~ +85°C |
| Humidity |
5 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-8417 CR |
4-slot ISaGRAF Based Serial Embedded Controller with 80188-40 CPU and 4 COM Ports (Blue Cover) (RoHS) |
