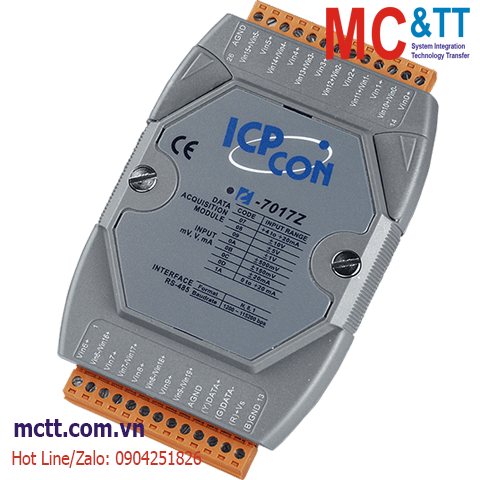

Module RS-485 DCON 10/20 kênh đầu vào tương tự AI ICP DAS I-7017Z-G CR

Chia sẻ:
Mã sản phẩm: I-7017Z-G
Thương hiệu: ICP DAS
Tình trạng:

10/20-ch AI Module with High Voltage Protection

Liên hệ
Mô tả

Module RS-485 DCON 10/20 kênh đầu vào tương tự AI ICP DAS I-7017Z-G CR

Features

  • 10 Differential or 20 Single-ended Analog Inputs
  • Jumper Selectable Voltage or Current Input
  • Supports Fast and Normal Mode Sampling
  • Overcurrent Protection
  • Individual Channel Configuration
  • Built-in Dual Watchdog

Introduction

The I-7017Z is an Analog Input module that includes 10 differential or 20 single-ended Analog Input channels. The module provides a programmable input range on all Analog Input channels. Each Analog Input channel can be configured for an individual input range, providing a high overvoltage protection of 240 Vrms and 50mA overcurrent protection at 110 VDC/VAC. Voltage and current input is jumper selectable. The sampling rate of the I-7017Z is adjustable can be set to either fast or normal mode. The module also features per-channel open wire detection for 4 ~ 20 mA input and provides 4 KV ESD protection as well as 3000 VDC intra-module isolation. The M-7017Z supports both the Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7017Z.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3000 VDC
EMS Protection
EFT (IEC 61000-4-4) ±4 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
Surge (IEC 61000-4-5) ±0.5 kV for Power Line
LED Indicators
Status 1 x Power and Communication
Analog Input
Channels 10 Differential or 20 Single-ended (Software Selectable - see Note 1)
Type Voltage
Current
Range Voltage: ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V
Current: ±20 mA , 0 ~ +20 mA, +4 ~ +20 mA (Jumper Selectable)
Resolution 16-bit
Accuracy Normal Mode: ±0.1% of FSR
Fast Mode: ±0.5% of FSR
Sampling Rate Normal Mode: 10 Hz
Fast Mode: 60 Hz
Input Impedance Voltage: 2 MΩ (Differential)
Current: 125 Ω (Differential)
Common Voltage Protection ±200 VDC
Overvoltage Protection 240 Vrms
Overcurrent Protection 50 mA at 110 VDC
Individual Channel Configuration Yes
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1)
Protocol DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 2.0 W
Mechanical
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7017Z-G     CR  10/20-ch AI Module with High Voltage Protection using DCON Protocol (Gray Cover) (RoHS)
