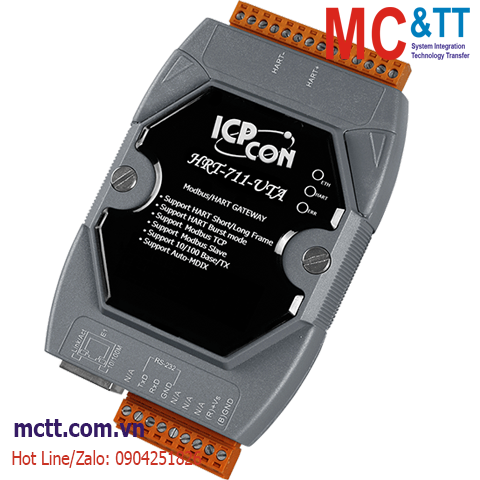

Bộ chuyển đổi Modbus TCP/UDP sang HART ICP DAS HRT-711-UTA CR

Chia sẻ:
Mã sản phẩm: HRT-711-UTA CR
Thương hiệu: ICP DAS
Tình trạng:

Modbus TCP/UDP to HART Gateway (for -40 ℃ application)

Liên hệ
Mô tả

Bộ chuyển đổi Modbus TCP/UDP sang HART ICP DAS HRT-711-UTA CR

Features

  • Support HART Short/Long frame
  • Support HART Burst mode
  • Allow two HART Masters
  • Working in point-to-point or multi-drop HART mode
  • Connecting up to 15 HART modules
  • Support Modbus TCP/UDP server
  • Support Modbus Slave mode
  • Support firmware update via Com Port
  • Support on-line replacement of HART devices
  • Support acquire Long Frame Address automatically
  • Built-in Watchdog
  • Mountable on DIN Rail

Introduction

The HRT-711-UTA Gateway is specially designed for the master device of HART protocol. It allows the Modbus master to access the HART devices. These HART devices may be a transmitter, an actuator and so forth. In addition, we also provide the utility software for users to configure the HRT-711-UTA. By using this module, users can integrate their HART devices into Modbus network easily.

Applications

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc…

Specifications

COM Ports
Ports RS-232(3 wires)
Ethernet
Ports 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)
HART
Ports 1
Device 2-wired or 4-wired HART devices
Topology Point to Point or Multi-Drop
Data Only Digital Data
Frame Type Short and Long Frame
Burst Mode Supported
Max. HART Device 15
Loop Resistor 250 Ω resistor by Jumper
Isolation UL1577 Spec.
Protocol 2-pin screwed terminal block
Power
Reverse Polarity Protection Power reverse polarity protection, Over-voltage brown-out protection
Input Range Unregulated +10 ~ +30 VDC
Consumption 1 W
Mechanical
Dimensions (mm) 72 x 35 x 121 (W x L x H) Detail
Installation DIN-Rail or Wall Mounting
Environment
Operating Temperature -40 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 5% ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

HRT-711-UTA     CR  Modbus TCP/UDP to HART Gateway (RoHS) (for -40 ℃ application)
