Bo mạch mở rộng cho GTP-500M ICP DAS GTP-X301 CR
Feature
Introduction

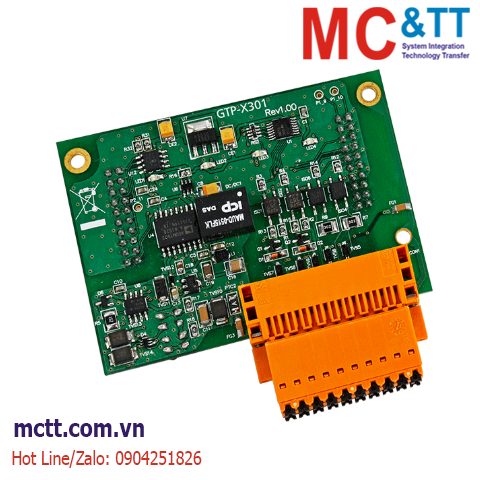

GTP-X301 is I/O expansion board for GTP-500M.
GTP expansion board is suitable for GTP series intelligent controller, it can expand the I/O function, so that intelligent controller can be applied to more scenarios.
The GTP-X301 is a multifunction expansion board that includes 1 Analog Input channel, 6 Digital Input channels and 2 Digital Output channels. The Analog Input channel is 0 ~ +20 mA current input. 4 kV ESD protection and 3750 VDC intra-module isolation are provided to enhance noise immunity capabilities in industrial environments.
Application
Specifications
| Analog Input |
| Channels |
1 |
| Type |
0 ~ 20 mA |
| Resolution |
12-bit |
| Digital Input |
| Channels |
6 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source, Isolated channel with common power or ground |
| ON Voltage Level |
+3.5 ~ 30 VDC |
| OFF Voltage Level |
+1V max. |
| Response Speed |
6 (5~40Hz), Min. Pulse Width : 25ms |
| Isolation |
3750Vrms |
| Digital Output |
| Channels |
2 |
| Type |
Open-Collector |
| Sink/Source (NPN/PNP) |
Sink |
| Load Voltage |
+30 V max |
| Load Current |
100 mA |
| Isolation |
3750Vrms |
Download
Datasheet
Documents
Ordering Information
| GTP-X301 CR |
I/O expansion board for GTP-500M(RoHS) |
