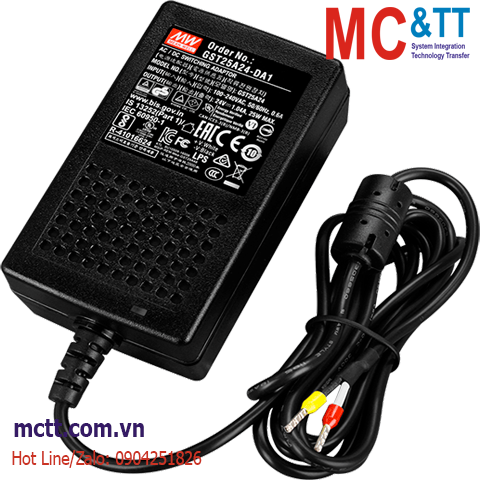

Bộ đổi nguồn 220VAC/24VDC 1A 25W ICP DAS GST25A24-DA1 CR

Chia sẻ:
Mã sản phẩm: GST25A24-DA1
Thương hiệu: ICP DAS
Tình trạng:

Desktop Style Power Supply, 85~264 VAC to 24 VDC/1.04 A, 25 W

Liên hệ
Mô tả

Bộ đổi nguồn 220VAC/24VDC 1A 25W ICP DAS GST25A24-DA1 CR

Feature

  • Universal AC input I Full range
  • Protections: Short circuit I Overload I Over voltage
  • Fully enclosed plastic case

Introduction

Application

Specifications

Safety
Standard UL62368-1, CSA C22.2 No.62368-1, TUV EN62368-1, BSMI CNS 14336-1 ,CCC GB4943.1, PSEJ62368-1,AS/NZS 60950.1,
BIS 1513252, KC K60950·1,EAC TP TC 004 approved
EMC
Standard EN55032(CISPR32),FCC PART 15 / CISPR22
CAN ICES-3(B)/NMB-3(B), CNS13438
Input
Voltage Range 85-264VAC
Frequency Range 47-63Hz
AC Current (Typ.) 0.6A/115VAC, 0.35A/230VAC
Inrush Current (Typ.) Cold start 35A/115VAC, 65A/230VAC
Leakage Current 0.75 mA/240 VAC
Output
Ripple & Noise (Max.) 150mVp-p
Setup, Rise Time 1000ms, 30ms
Hold Up Time (Typ.) 50ms/230VAC
DC Voltage 24VDC
Rated Power 25W
Rated Current 1.04A
Efficiency 88% typical
Protection
Over Voltage Yes (clamp by Zener diode).
Mechanical
Casing Plastic
Dimensions (mm) (54 * 93 * 36)mm
Installation Desktop Style
Environment
Temperature Coefficient ±0.03%/°C (0~50°C)
Operating Temperature -30 °C~ +70°C
Storage Temperature -40 °C~ +85°C
Humidity 20% ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

GST25A24-DA1     CR  Desktop Style Power Supply, 85~264 VAC to 24 VDC/1.04 A, 25 W (RoHS)
