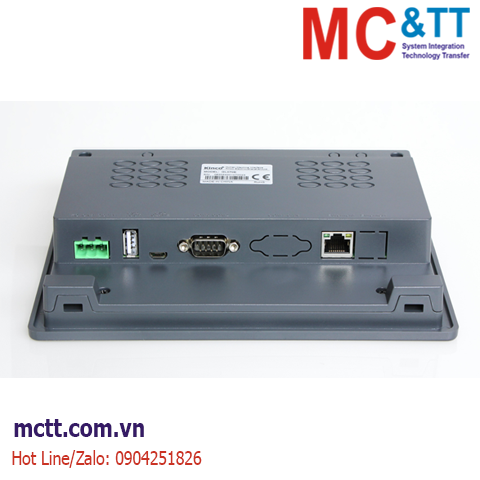

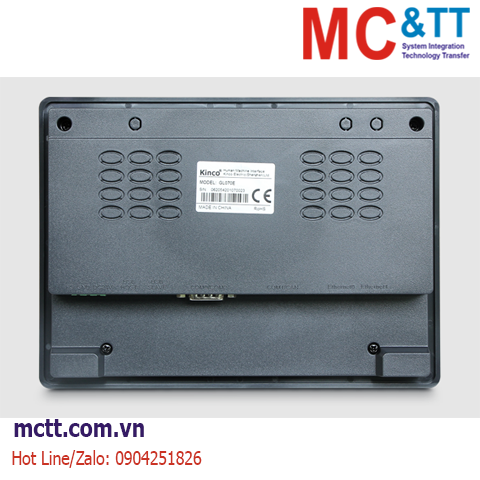

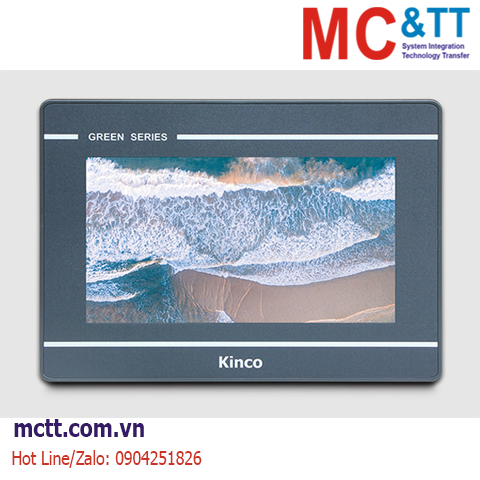

Màn hình cảm ứng HMI 7 inch Kinco GL070E (2 cổng COM, 1 Ethernet)
The Green Series GL070 is the most modern and powerful HMI product that will make your application work seamlessly, without missing a step. The GL070 Series has a new structure and elegant body, compared to previous HMI ’s. This HMI line comes with a 16.77 million Color Display mode that gives your touch screen rich color and incomparable resolution.
The Green Series products use the most advantageous ARM Cortex-A7 architecture industrial-grade processors, which ensure that the HMI ’s work efficiently. Furthermore, it has a much higher hardness and intensity with a higher temperature resistance. Each HMI supports simultaneous communications via its multiple serial ports, so that you can connect to different controllers at the same time. With the simple, convenient and powerful DTools configuration software, the user can master its design method and create first-class programs efficiently.
Tính năng
- 7" Display
- 16.77m (24 Bits) True Color
- 32-Bit 800 MHz ARM RISC CPU
- 128MB NAND FLASH + 128MB DDR3 Memory
- Real-Time Clock, Reserve Time for More than 2 Years at Power Off State
- 2 COM Ports, Supports Simultaneous Communications, Supports RS232/RS485/RS422
- 24 VDC Input Voltage
- CE Certified
Thông số kỹ thuật
|
Model |
GL070 |
GL070E |
|
Performance specification |
|
Display size |
7" TFT |
|
Display area |
154.08mm(W)x85.92mm(H) |
|
Resolution |
800*480 pixels |
|
Display color |
16.7M color |
|
Display angle of view |
70/70/50/70 (left/right/up/down) |
|
Contrast ratio |
500:1 |
|
Backlight |
LED |
|
Brightness |
250cd/m2 |
|
Backlight life |
More than 30000 hours |
|
Touch Panel |
4 wire precision resistance network (surface hardness 4H) |
|
CPU |
ARM RISC 32Bit 800MHz |
|
Storage |
128MB NAND Flash Memory + 128MB DDR3 Memory |
|
RTC |
Built-in real time clock |
|
Extensible memory |
1 USB Host |
|
Printer port |
USB Host/Serial port |
|
Ethernet |
None |
10/100MHz self-adaption |
|
Program download |
USB Slave(Micro USB) /U disk |
USB Slave(Micro USB) /U disk/ Ethernet |
|
COM port |
COM0: RS232/RS485/RS422; COM2: RS232 |
|
Electrical specification |
|
Input power supply |
DC10V~DC28V,Built-in isolation power supply |
|
Rated power |
3.6W @24V DC |
| Allowable loss of power |
<3ms |
|
Insulation resistance |
Over 50MΩ@500V DC |
|
Hi-pot test |
500V AC 1 minute |
|
Structure specification |
|
Shell material |
Engineering plastic |
|
Dimensions(mm) |
204mm*150mm*37mm |
|
Cutout size(mm) |
192mm*138mm |
|
Weight |
0.5 Kg |
|
Environment specification |
|
Operating temperature |
0～50℃ |
|
Operating humidity |
10～90% non-condensing |
|
Storage temperature |
-20～60℃ |
|
Storage humidity |
10～90% non-condensing |
|
Shockproof test |
10～25Hz (X, Y, Z direction, 2G, 30 minutes) |
|
Cooling method |
Natural air cooling |
|
Certification |
|
Degree of protection |
Conforming to IP65 certification (4208一93) |
|
CE certification |
Comply with EN6100-6-4:2007 + A1:2011, EN61000-6-2:2005 |
|
Software |
|
Configuration software |
Kinco DTools V3.3 and above |
Thông tin đặt hàng
7″, 16.77 million color, TFT, 800*480 resolution, 2* COM, 1*USB HOST, 1*Micro USB, Ethernet
Tài liệu
Datasheet
User Manual
Software
Kinco DTools V4.1.0.3（Build230705）
