Mô tả

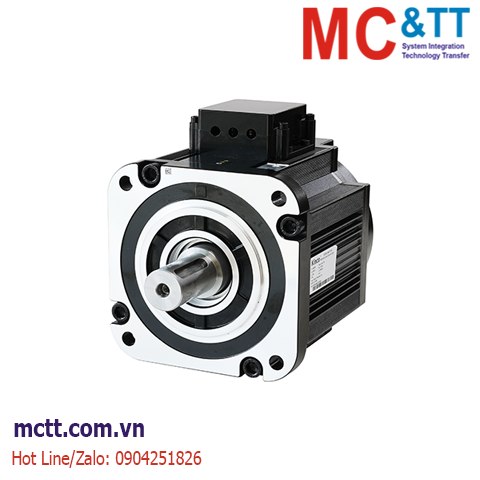

Động cơ DC Servo 5000W without brake Kinco SMK180G-0500-20QAK-4GSA

Tính năng

Thông số kỹ thuật

Low-voltage servo motor specification (DC48V)

Flange
(mm)
 Model    Feed back device Rotor ment of inertia
Jm (Kg•cm2 )
 Rated
power
Pn(W)
Rated
torque
Tn(Nm)
Rated
current
In(A)
Rated
 speed
nN(rpm)
40x40 SMC40S-0005-30M□K-5DSU Magnetoelectric encoder 0.018(0.021) 50 0.16 1.5 3000
SMC40S-0005-30Q□K-5DSU Multi-turn magnetoelectric absolute value encoder
SMC40S-0010-30M□K-5DSU Magnetoelectric encoder  0.033(0.046) 100 0.32 3.2
SMC40S-0010-30Q□K-5DSU Multi-turn magnetoelectric absolute value encoder  0.033(0.036)
60x60 SMC60S-0020-30M□K-5DSU Magnetoelectric encoder 0.14(0.144) 200 0.64 5.7
SMC60S-0020-30Q□K-5DSU Multi-turn magnetoelectric absolute value encoder 0.2(0.204)
SMC60S-0020-30A□K-5DSH 2500P/R optical encoder 0.14(0.144)
SMC60S-0020-30W□K-5DCH 2500P/R Incremental magnetoelectric encoder motor 0.11(0.114)
SMC60S-0040-30M□K-5DSU Magnetoelectric encoder 0.26(0.264) 400 1.27 10.6
SMC60S-0040-30Q□K-5DSU Multi-turn magnetoelectric absolute value encoder 0.38(0.384)
SMC60S-0040-30A□K-5DSH 2500P/R optical encoder 0.26(0.264)
SMC60S-0040-30W□K-5DCH 2500P/R Incremental magnetoelectric encoder motor
SMC60S-0060-30M□K-5DSU Magnetoelectric encoder 0.403(0.407) 600 1.91 16.5
SMC60S-0060-30Q□K-5DSU Multi-turn magnetoelectric absolute value encoder 0.65(0.654)
SMC60S-0060-30A□K-5DSH 2500P/R optical encoder 0.403(0.407)
SMK60S-0020-30M□K-5DSA  Magnetoelectric encoder 0.17(0.174) 200 0.64 5.7
SMK60S-0020-30Q□K-5DSA  Multi-turn magnetoelectric absolute value encoder
SMK60S-0040-30M□K-5DSA  Magnetoelectric encoder 0.31(0.314) 400 1.27 10.6
SMK60S-0040-30Q□K-5DSA  Multi-turn magnetoelectric absolute value encoder
80x80 SMC80S-0075-30M□K-5DSU Magnetoelectric encoder 1.027(1.099) 750 2.39 19.9
SMC80S-0075-30Q□K-5DSU Multi-turn magnetoelectric absolute value encoder
SMC80S-0075-30A□K-5DSH 2500P/R optical encoder
SMC80S-0075-30W□K-5DCH 2500P/R Incremental magnetoelectric encoder motor 0.77(0.84)
SMC80S-0100-30M□K-5DSU Magnetoelectric encoder 1.36(1.41) 1000 3.18 26.4
SMC80S-0100-30Q□K-5DSU Multi-turn magnetoelectric absolute value encoder
SMC80S-0100-30A□K-5DSH 2500P/R optical encoder
SMC80S-0100-30W□K-5DCH 2500P/R Incremental magnetoelectric encoder motor 1.027(1.099)
SMC80S-0120-30A□K-5DSH 2500P/R optical encoder 1.36(1.41) 1200 3.82 34
SMC80S-0120-30Q□K-5DSU Multi-turn magnetoelectric absolute value encoder
SMC80S-0150-30Q□K-5DSU 1.64(1.901) 1500 4.77 37.4
SMK80S-0075-30M□K-5DKA  Magnetoelectric encoder 0.85(0.91) 750 2.39 19.2
SMK80S-0075-30Q□K-5DKA  Multi-turn magnetoelectric absolute value encoder
SMK80S-0100-30M□K-5DKA  Magnetoelectric encoder 1.16(1.22) 1000 3.81 25.8
SMK80S-0100-30Q□K-5DKA  Multi-turn magnetoelectric absolute value encoder
110x110 SMH110D-0120-30A□K-4DKR 2500P/R optical encoder 5.8(6.1) 1200 4 32
130x130 SMC130D-0120-30A□K-4DKR 7.4(7.5) 3.8 31.6
SMC130D-0150-30A□K-4DKR 12(12.1) 1500 5 37.5
SMC130D-0150-30W□K-4DSH-2 2500P/R Incremental magnetoelectric encoder motor 11.5(11.5) 1500 5 42.4
SMC130D-0250-30W□K-4DSH-2 17.1(17.1) 2500 7.96 61
SMC130D-0300-30W□K-4DSH-2 22.6(22.6) 3000 9.55 72
SMC130D-0300-20W□K-4DSH-2 35.9(35.9 3000 14.3 77.7 2000
180x180 SMK180G-0300-20Q□K-4GSA Multi-turn magnetoelectric absolute value encoder 47.34(51.43) 3000 14.33 37.5 2000
SMK180G-0400-20Q□K-4GSA 62.34(66.43) 4000 19.1 50
SMK180G-0500-20Q□K-4GSA 81(85.09) 5000 23.88 62.6
Note  1: environmental conditions
            Operating emperature: -20~40℃ (no freezing)
            Maximum humidity level: 90% RH or less (no condensation)
            Environmental conditions: away from corrosion, combustible gas, oil drops, dust
            Operating altitude: 1000 ~ 4000m, every 100m rise, power down 1.5%
            Protection grade: (1) IP65 for body, IP54 for shaft end (without oil seal) IP65 for shaft end mounted oil seal.
           (2)For more information about oil seal installation, see the product manual.
          Energy efficiency level: 2 levels
Note 2:□=A:without brake
                   =B:with brake
Note 3: The value in the inertia column in parentheses is the inertia column value of the brake motor.

Thông tin đặt hàng

Tài liệu

Kinco catalog_Low voltage servo
