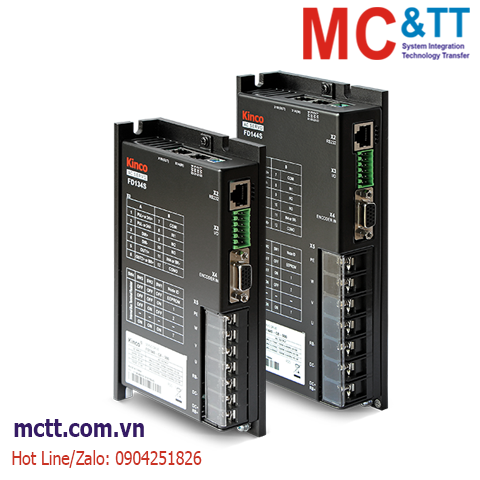

Bộ điều khiển DC Servo Driver 1200~1500W, CANopen Kinco FD144S-CB-000

Mã sản phẩm: FD144S-CB-000

Thương hiệu: Kinco

Tình trạng: Còn hàng

DC Servo Driver 1.2~1.5kW, CANopen

Liên hệ

Chính sách cửa hàng

Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

Thanh toán dễ dàng và bảo mật

Miễn phí vận chuyển với đơn hàng từ 10.000.000đ

Bảo hành 1 năm do lỗi nhà sản xuất

Cam kết 100% chính hãng

Bộ điều khiển DC Servo Driver 1200~1500W, CANopen Kinco FD144S-CB-000

Tính năng

Support pulse.
Support MODBUS, CANopen and EtherCAT communication control.
Low-voltage DC power supply, satisfy with requirements of AGV's power and power supply.
New small-Size terminal design, compact size and beautiful appearance.
3 times(for maximum) overload design, increase response speed when AGV start/stops.
Over-current, over-heat, over-voltage and motor over-heat protection(I²T), ensure driving system in a safe state.
All series products conform with CE verification and ROHS environment verification standard.

Thông số kỹ thuật

FD1X4S series	Model	Power （W)	Max continuous output current （rms)(A)	Current (PEAK)	Control mode	Brake power supply	24V Logic Power Supply
single -axis	FD114S-LB-000	50~100W	5Arms	8Ap	RS485，pulse	●	○
	FD114S-CB-000				CANopen	●	●
	FD114S-EB-000				EtherCAT	●	●
	FD124S-LA-000	200~400W	15Arms （No auxiliary heat dissipation up to 12Arms)	48Ap	RS485，pulse	○	○
	FD124S-LB-000				RS485，pulse	●	○
	FD124S-CA-000				CANopen	○	●
	FD124S-CB-000				CANopen	●	●
	FD124S-EA-000				EtherCAT	○	●
	FD124S-EB-000				EtherCAT	●	●
	FD134S-LA-000	750W	25Arms (No auxiliary heat dissipation up to 20Arms)	80Ap	RS485，pulse	○	○
	FD134S-LB-000				RS485，pulse	●	○
	FD134S-CA-000				CANopen	○	●
	FD134S-CB-000				CANopen	●	●
	FD134S-EA-000				EtherCAT	○	●
	FD134S-EB-000				EtherCAT	●	●
	FD144S-LA-000	1.2~1.5kW	40Arms (No auxiliary heat dissipation up to 30Arms）	120Ap	RS485，pulse	○	○
	FD144S-LB-000				RS485，pulse	●	○
	FD144S-CA-000				CANopen	○	●
	FD144S-CB-000				CANopen	●	●
	FD144S-EA-000				EtherCAT	○	●
	FD144S-EB-000				EtherCAT	●	●
	FD164S-CB-000	2.5KW	80Arms (No auxiliary heat dissipation up to 60Arms）	240Ap	CANopen	●	●
Double-axis	FD134S-LB-000-D2	750W	20Arms (No auxiliary heat dissipation up to15Arms)	80Ap	RS485，pulse	●	○
	FD134S-CB-000-D2				CANopen	●	●
	FD134S-CB-020-D2				CANopen	●	○
Notes: ● means support, ○ means not support.

FD1X4S series	Model	Power （W)	Max continuous output current （rms)(A)	Current (PEAK)	Control mode	24V Logic Power Supply	Notes
single -axis	FD114S-CB-005	50~100W	5Arms	8Ap	CANopen	●	Matching absolute value encoder motor
	FD114S-EB-005				EtherCAT	●
	FD124S-CB-005	200~400W	15Arms （No auxiliary heat dissipation up to 12Arms)	48Ap	CANopen	●
	FD124S-EB-005				EtherCAT	●
	FD134S-CB-005	750W	25Arms (No auxiliary heat dissipation up to 20Arms)	80Ap	CANopen	●
	FD134S-EB-005				EtherCAT	●
	FD144S-CB-005	1.2~1.5kW	40Arms (No auxiliary heat dissipation up to 30Arms）	120Ap	CANopen	●
	FD144S-EB-005				EtherCAT	●
Notes: ● means support, ○ means not support.
