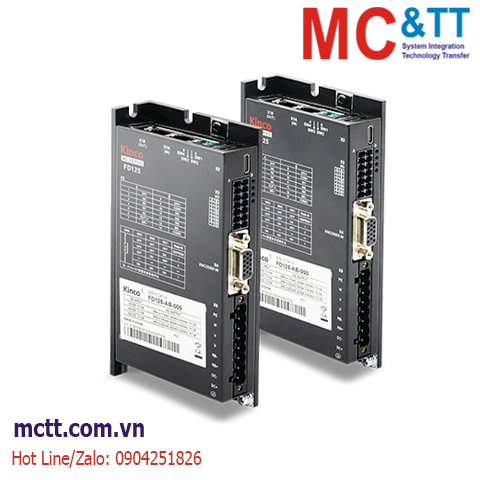

Bộ điều khiển DC Servo Driver 200~400W, CANopen, RS485 & Pulse Kinco FD125-AB-000
Tính năng
• New high-computing power platform
Equipped with a high-computing power platform, the main frequency is increased by 2.4 times, 8K position loop, 16K speed loop, providing the robot with faster response speed and more precise control.
• Performance upgrade
The power supply voltage level is 24-60V, and the sustainable output current is generally increased by 20%, with sufficient overload capacity to ensure excellent performance and outstanding control capabilities.
• Convenient debugging, diverse communications
The Type-C debugging port is conveniently designed (no power supply is required, and USB can be directly connected to the computer for parameter adjustment), fast debugging, saving time and cost, and with the easy-to-use debugging software KS3, engineers can easily master servo applications and put the robot system into operation quickly.
RS485+CANopen has the same interface, which is convenient for access to the control system. Because RS485 has the control capability of one master and multiple slaves, cascade debugging can be adopted for multi-axis control, so as to realize fast connection and data transmission between multiple devices, eliminate the tedious steps of disassembly and assembly during debugging, and ensure flexibility and scalability.
• Safety protection, stable operation
FD1X5 series servo system has motor overspeed protection and motor over-temperature protection, which fully guarantees the safety of equipment and operators, and runs stably without worries.
Thông số kỹ thuật
| Model |
Power
（W) |
Max continuous output current（rms)(A) |
Current
(AP) |
Control mode |
Brake power supply |
24V Logic Power Supply |
| FD125-AB-000 |
200～400W |
15A
(No auxiliary heat dissipation up to12A） |
48A |
RS485
CANopen
pulse |
have |
have |
| FD135-AB-000 |
750～1000W |
30A
(No auxiliary heat dissipation up to22A） |
100A |
| FD145-AB-000 |
1000～2000W |
50A
(No auxiliary heat dissipation up to 35A） |
160A |
Thông tin đặt hàng
Tài liệu
Low voltage servo_FD1X5&iSMK
FD1X5&iSMK Low Voltage Servo User Manual
