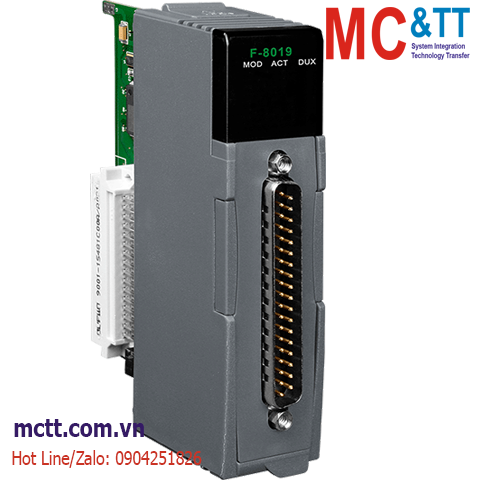

Module 8 kênh đầu vào Thermocouple AI ICP DAS F-8019 CR

Chia sẻ:
Mã sản phẩm: F-8019
Thương hiệu: ICP DAS
Tình trạng:

8-ch Isolated Thermocouple Input Redundant Module

Liên hệ
Mô tả

Module 8 kênh đầu vào Thermocouple AI ICP DAS F-8019 CR

Features

  • 8 thermocouple input channels
  • User defined up/down scale
  • Open wire detection
  • RoHS compliance
  • 3000 VDC isolation from output to backplane
  • 3000 VDC isolation from output to frame ground
  • Redundancy
  • Fast redundant switching time (<100us)

Introduction

The F-8019 is a 16-bit, 8-channel thermocouple input module that features programmable input range on all channels. It measures millivolt input (±15mV, ±50mV, ±100mV, ±150mV, ±500mV), voltage input (±1V, ±2.5V, ±5V, ±10V) and thermocouple input (Type J, K, T, E, R, S, B, N, C). An external CJC is supported for accurate termperature measurement. Moreover, this module has ±0.05% accuracy for highly accurate application. Besides, the F-8019 provides 3000 VDC optical isolation between channels and backplane bus. If any high voltage or current damages these channels, this module won’t affect other component in iDCS-8000 system.

Applications

  • Building Automation
  • Factory Automation
  • Machine Automation
  • Remote Maintenance
  • Remote Diagnosis

Specifications

EMS Protection
EFT (IEC 61000-4-4) Yes
ESD (IEC 61000-4-2) Yes
LED Indicators
Status 1 x RUN, 1 x ACT, 1 x DUX and Communication (32 as channel 0~31 status)
Analog Input
Channels 8
Type Voltage, Thermocouple
Sensor Type Type J, K, T, E, R, S, B, N, C
Range Voltage:
±15mV, ±50mV, ±100mV, ±150mV,
±500mV, ±1V, ±2.5V, ±5V, ±10V

Thermocouple:
J: -210 ~ +1200 °C
K: -270 ~ +1372 °C
T: -270 ~ +400 °C
E: -270 ~ +1000 °C
R: -50 ~ +1765 °C
S: -50 ~ +1765 °C
B: 0 ~ +1820 °C
N: -270 ~ +1300 °C
C: 0 ~ +2320 °C
Resolution 16 bit
Accuracy ±0.05% FSR
Sampling Rate 8 Samples/sec (Total)
Input Impedance 10 MΩ
Common Mode Rejection 106 dB
Normal Mode Rejection 90 dB
Overvoltage Protection Yes
Zero Drift ±0.5 μV/°C
Span Drift ±20 ppm/°C
Isolation 3000 VDC
Analog Output
Open Wire Detection Yes
I/O Expansion
I/O Type DN-TC-M
Power
Consumption 1.3 W
Mechanical
Dimensions (mm) 30 x 85 x 115
Weight 300 g
Environment
Operating Temperature -25 °C ~ +75 °C
Humidity 5 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

F-8019     CR  8-ch Isolated Thermocouple Input Redundant Module (RoHS)
